Bosch Vial Filling & Sealing Line

Used Bosch Vial Filling & Sealing Line for Liquid Pharmaceutical Products

Line to Include :

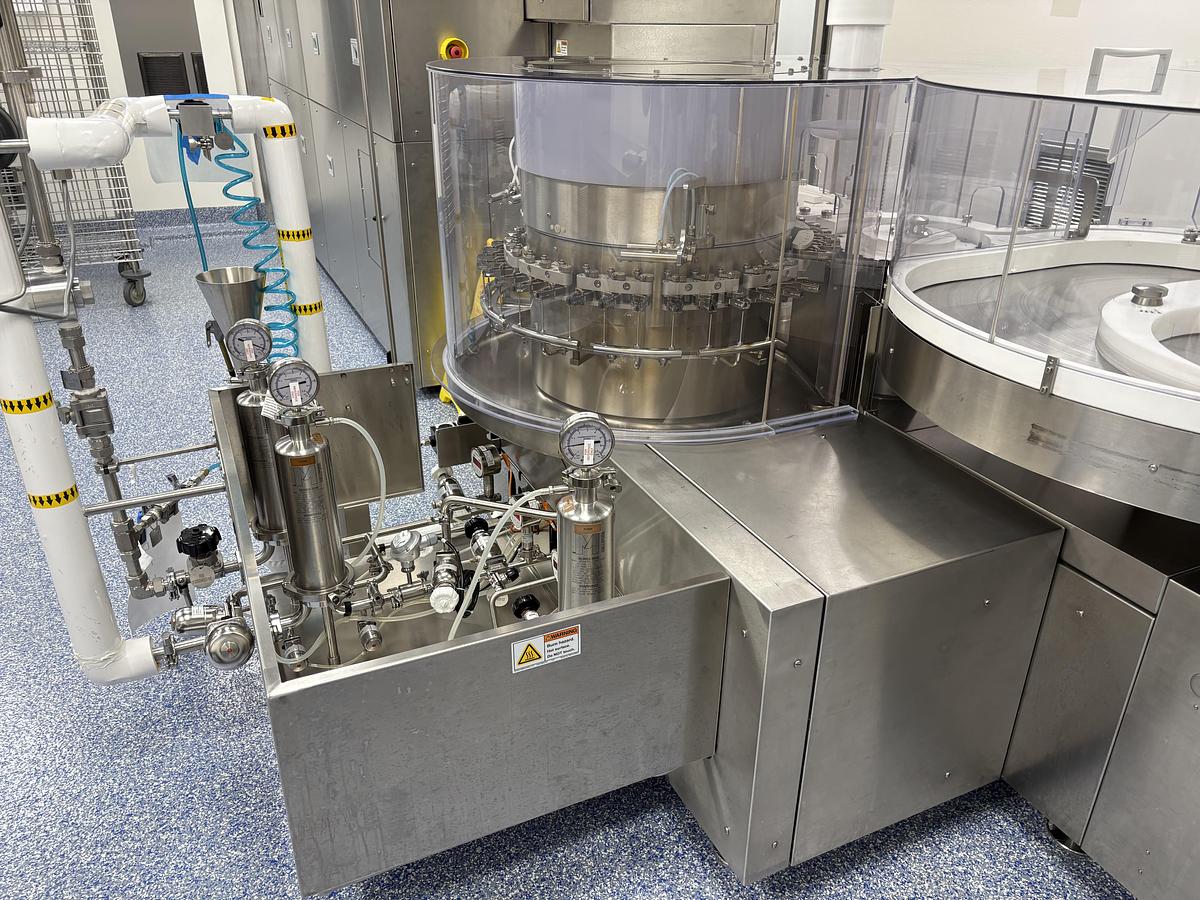

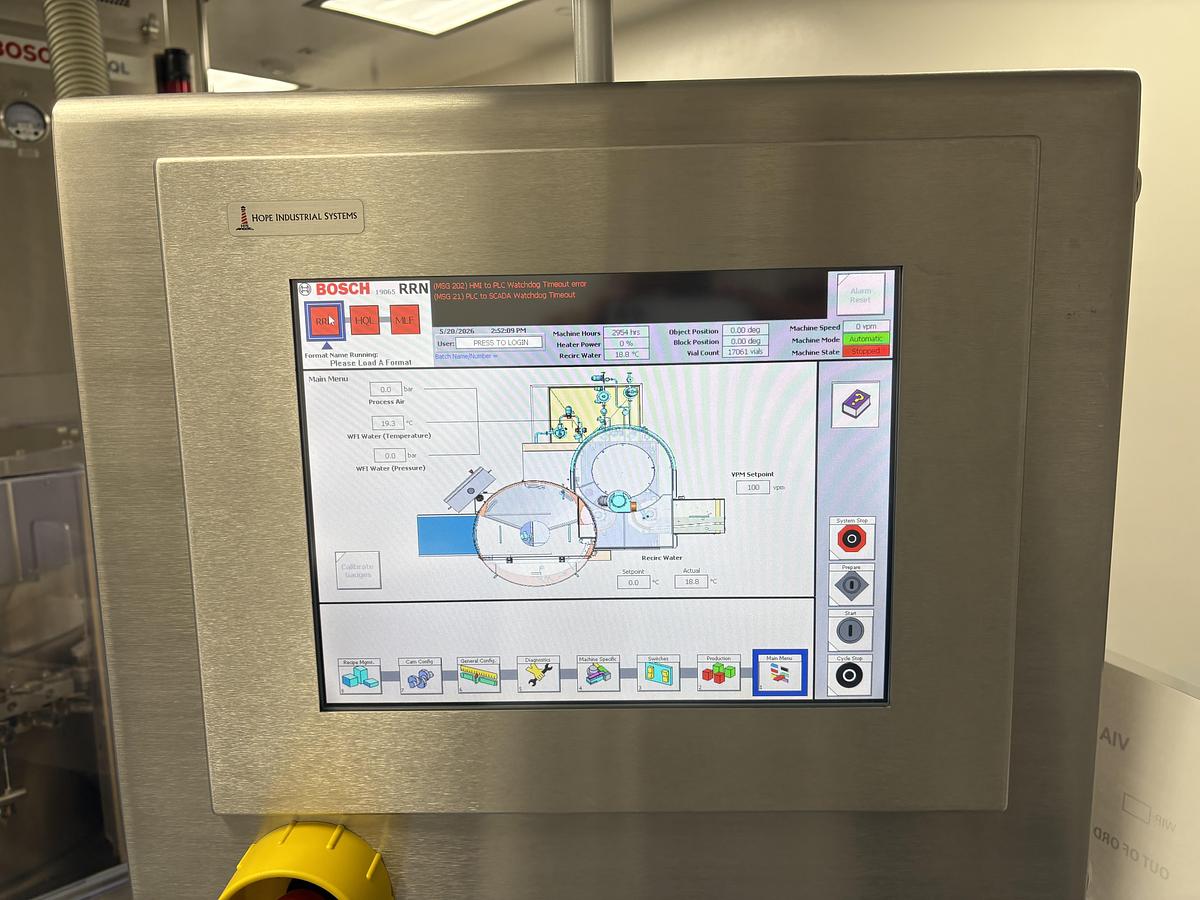

BOSCH RRN2033 Vial washer

• Recycle WFI initial rinse
• Fresh WFI final rinse with clean compressed air dry

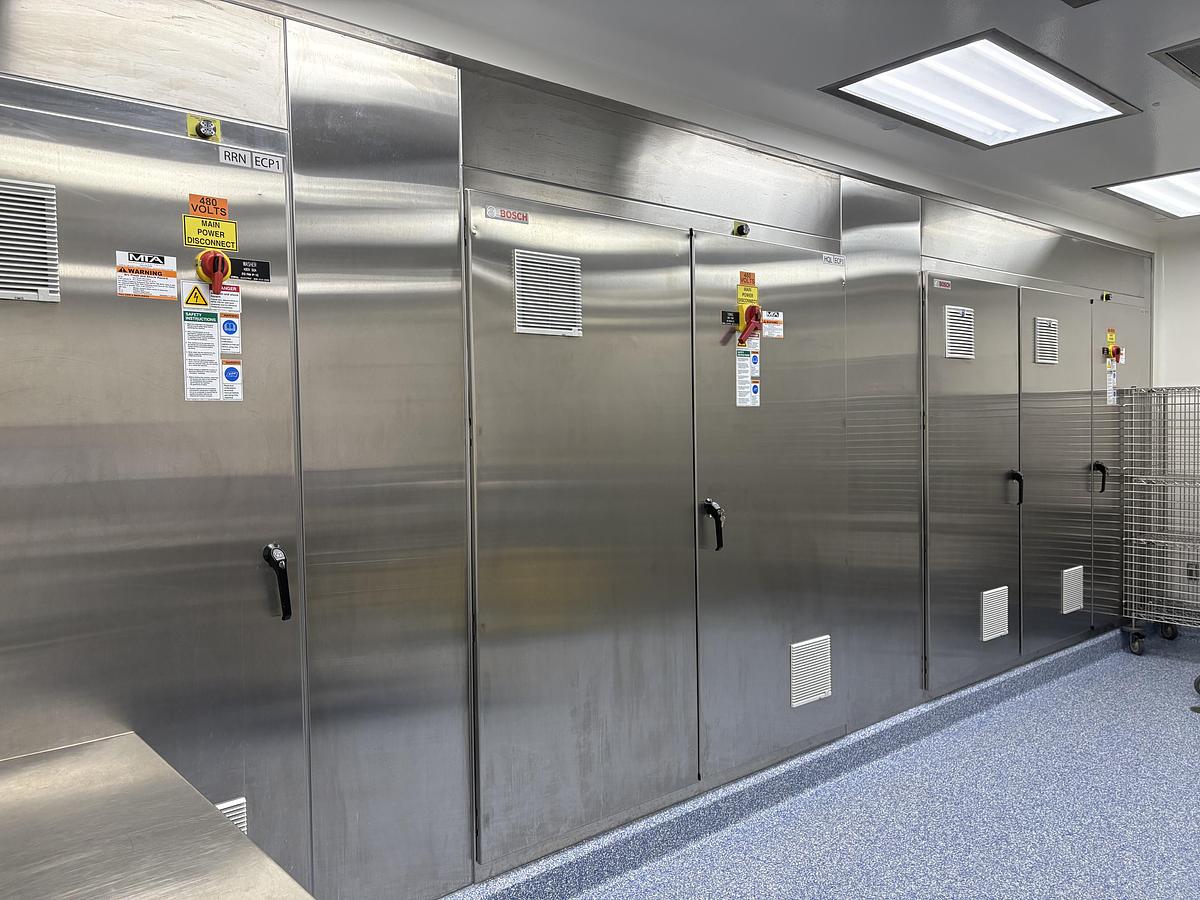

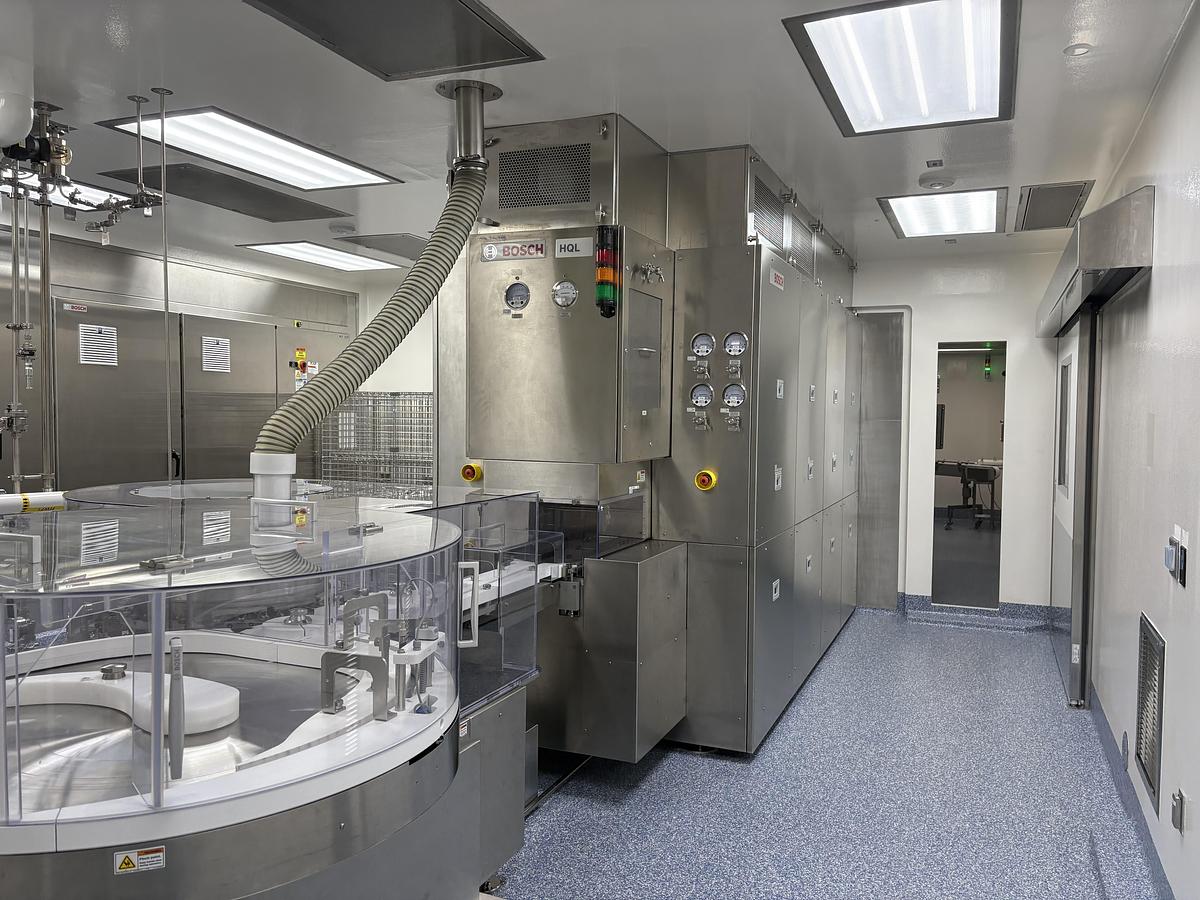

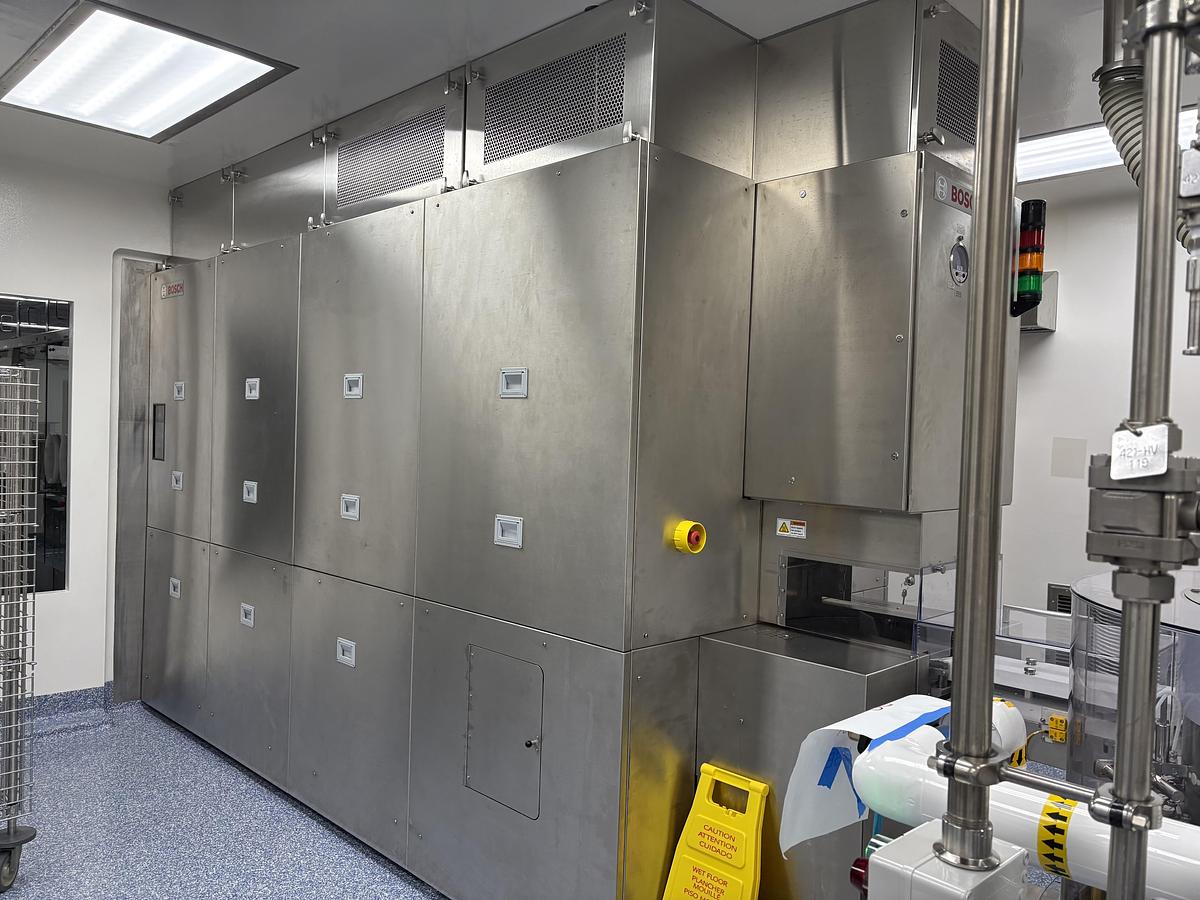

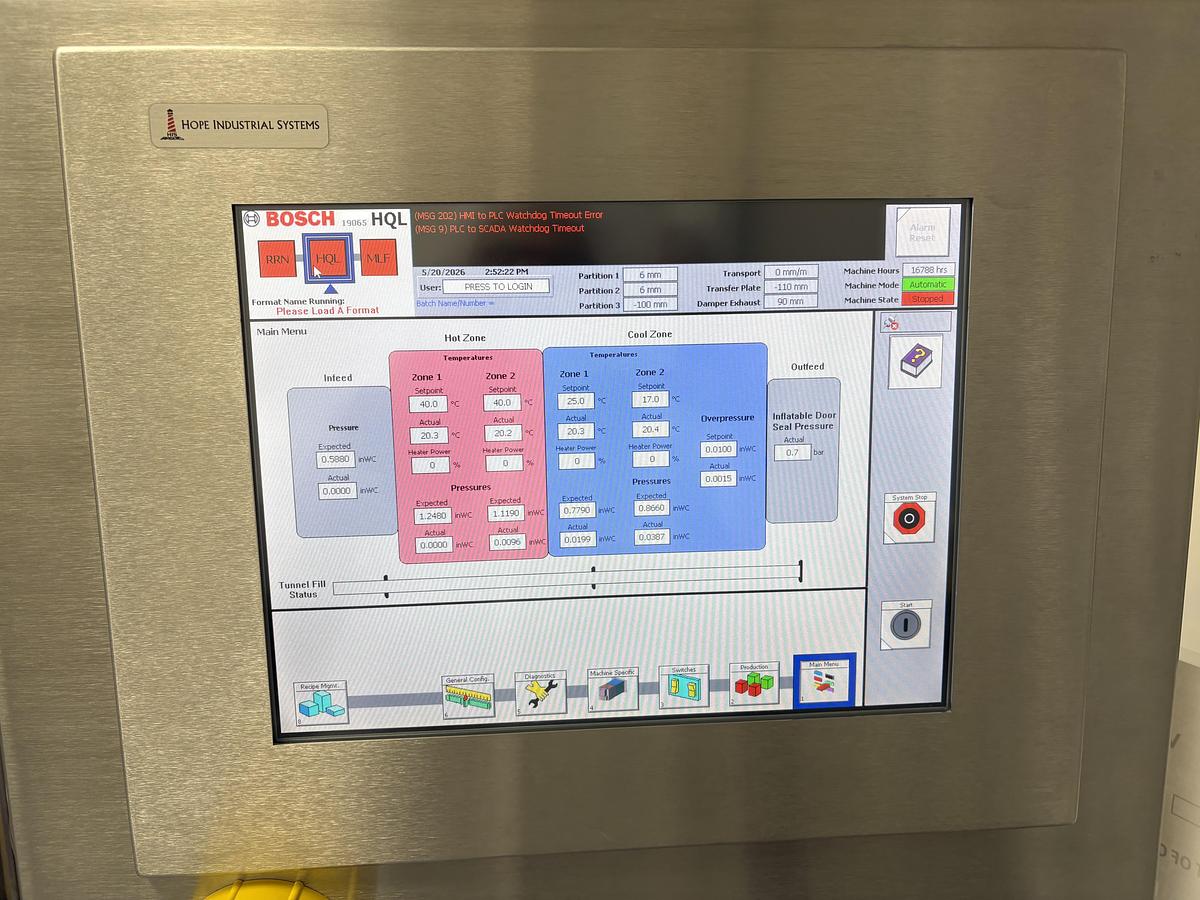

BOSCH HQL2240S Depyrogenization tunnel

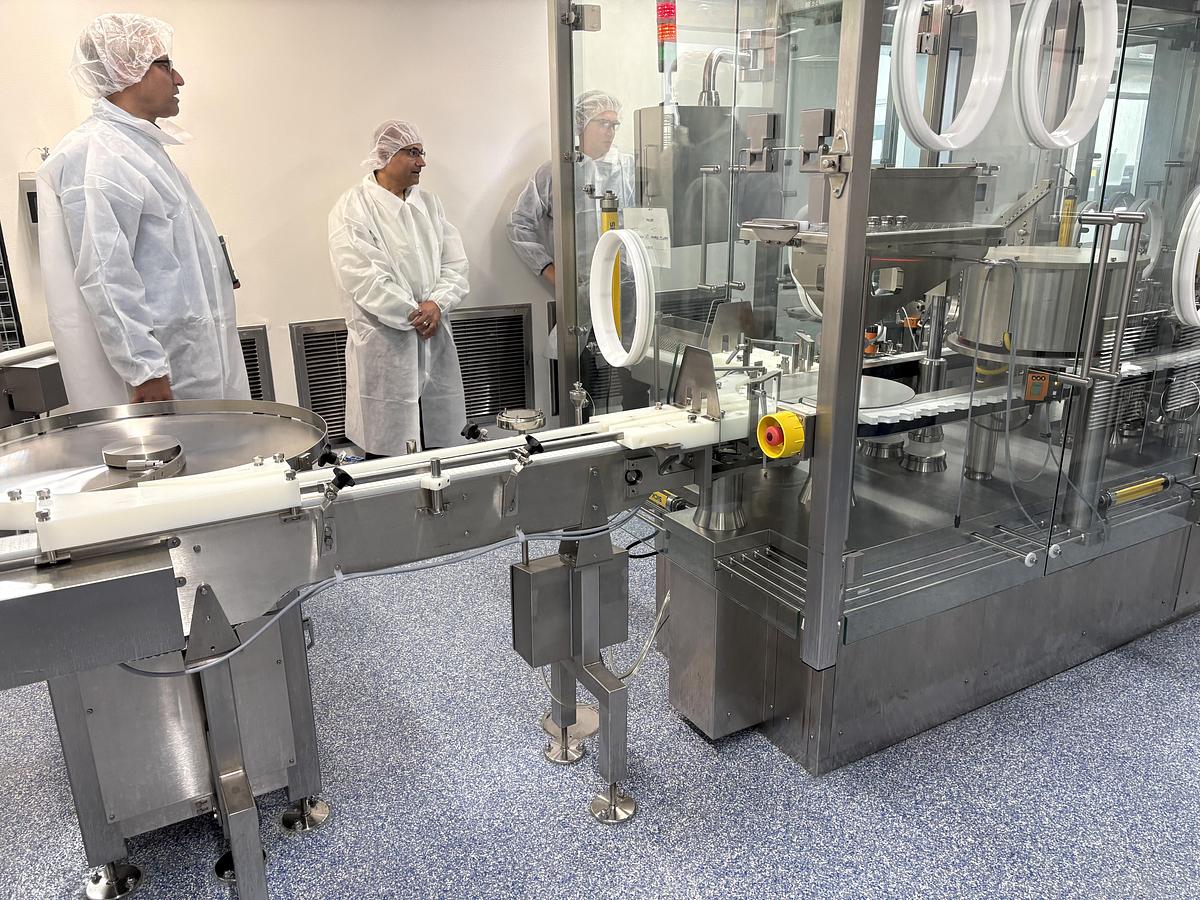

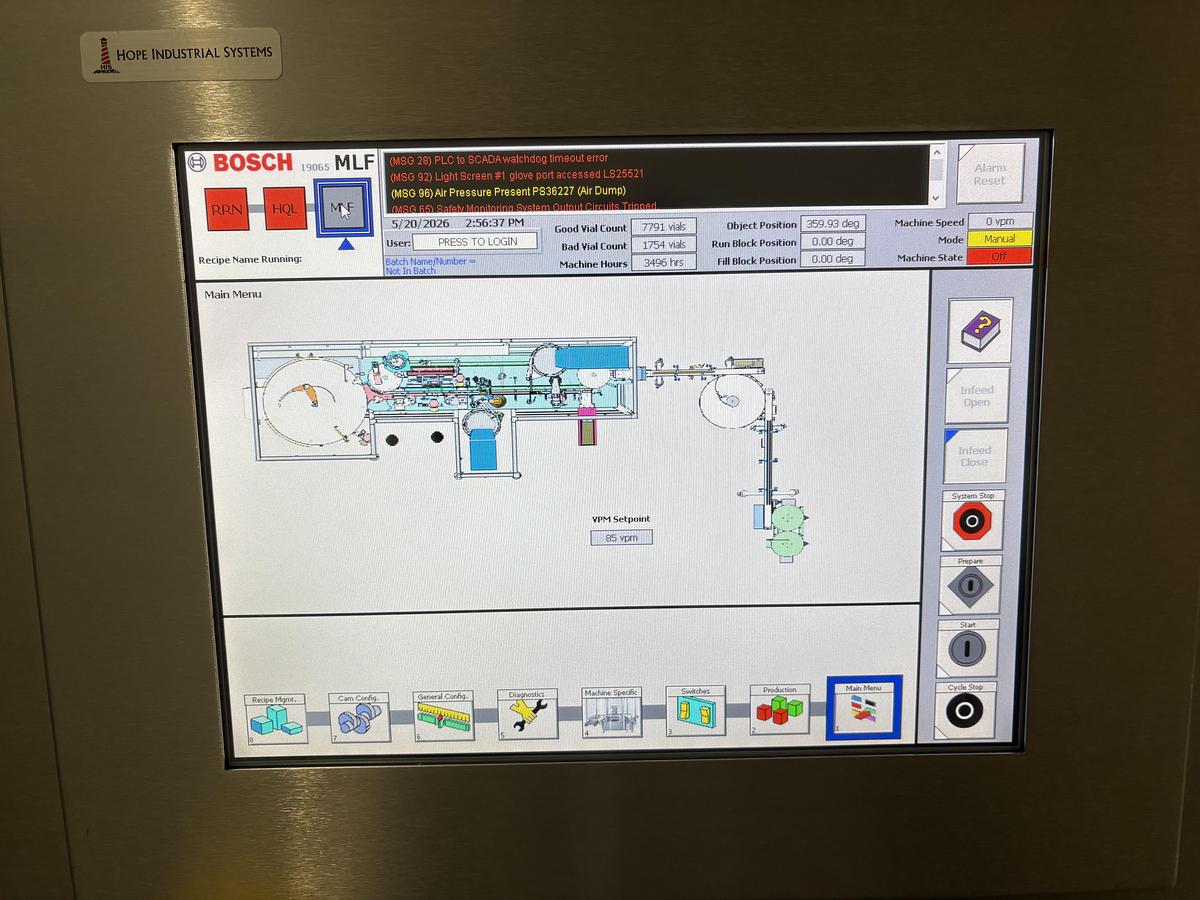

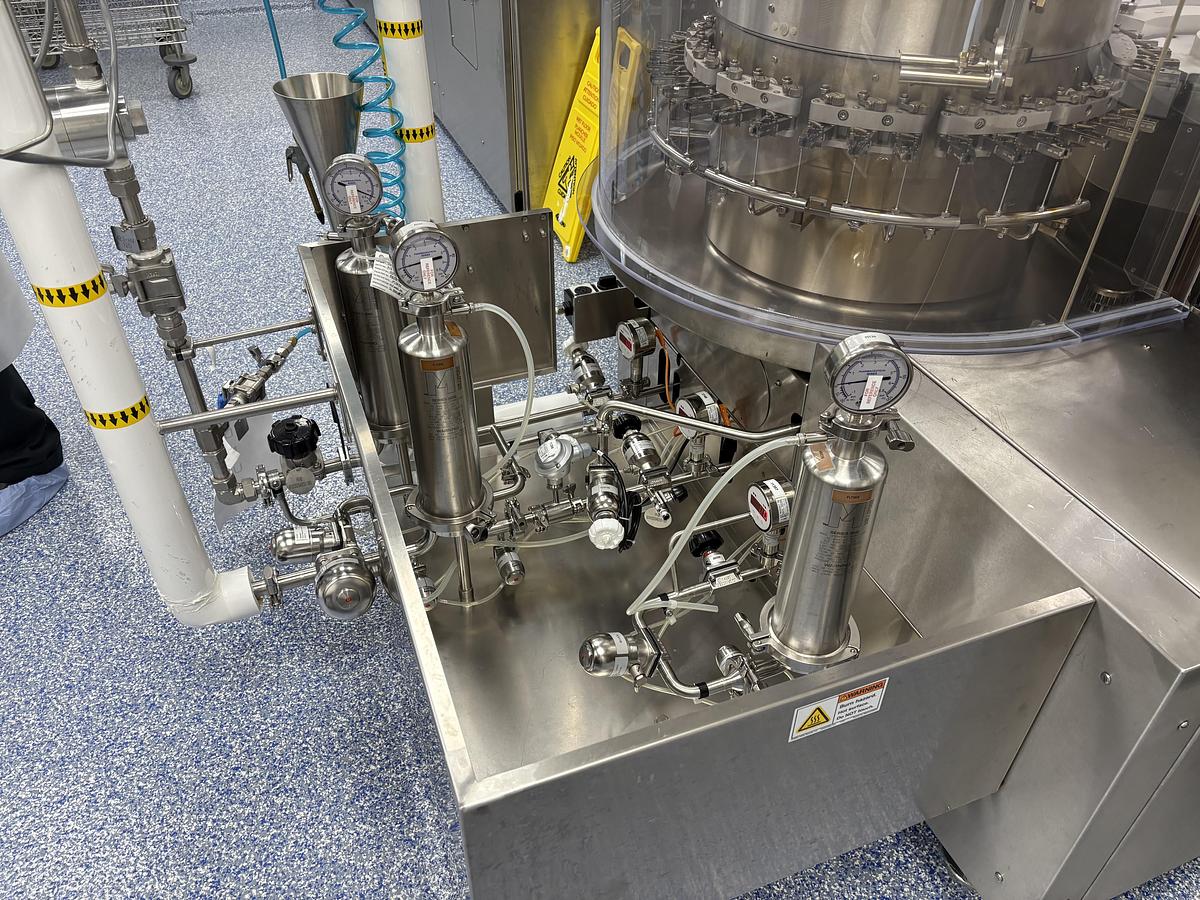

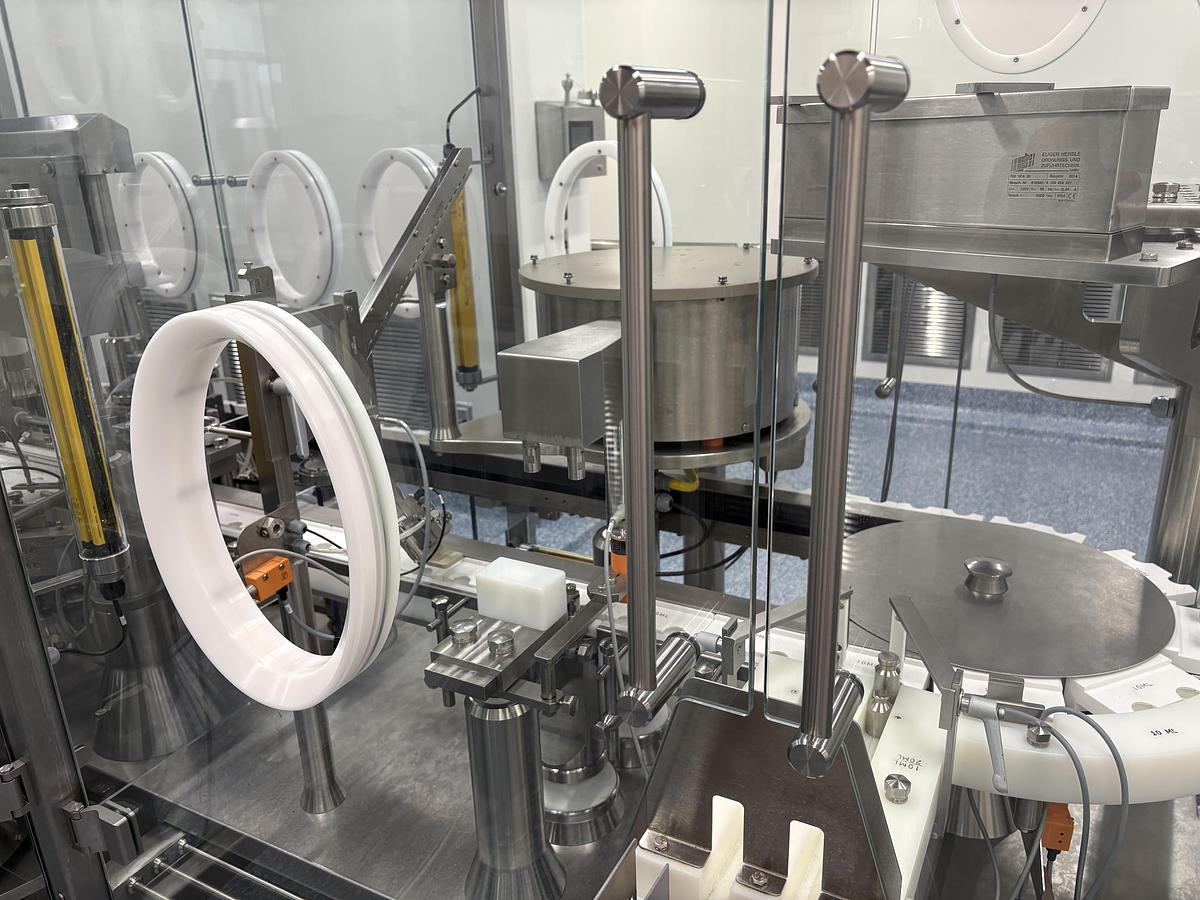

BOSCH MLF3040 Vial Filler, Stopper, Cap

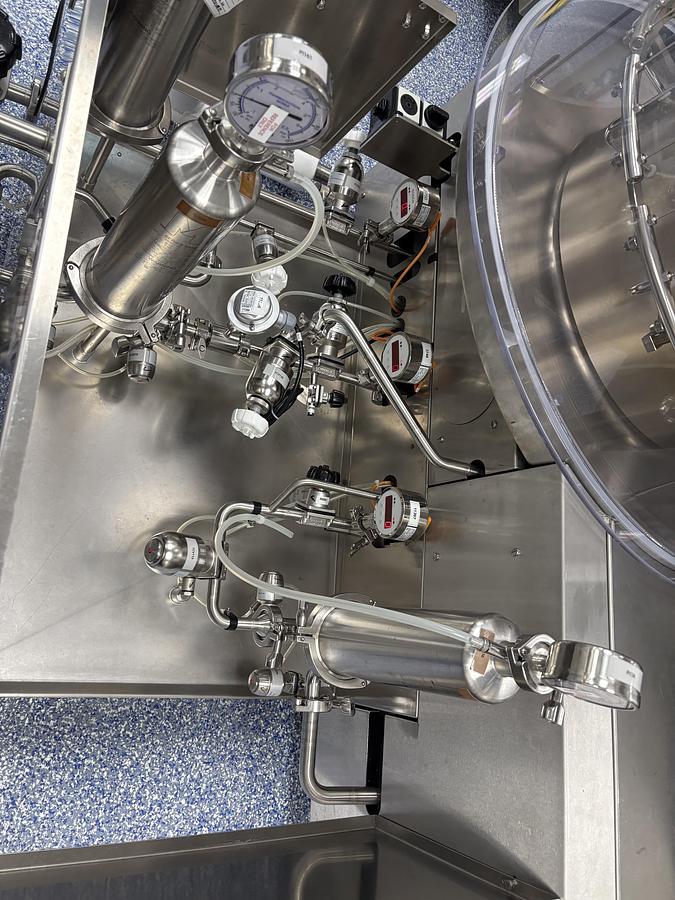

• 4-head rolling diaphragm pumps
• 100% IPC weight check system
• Stopper placement and Cap placement quality control with reject

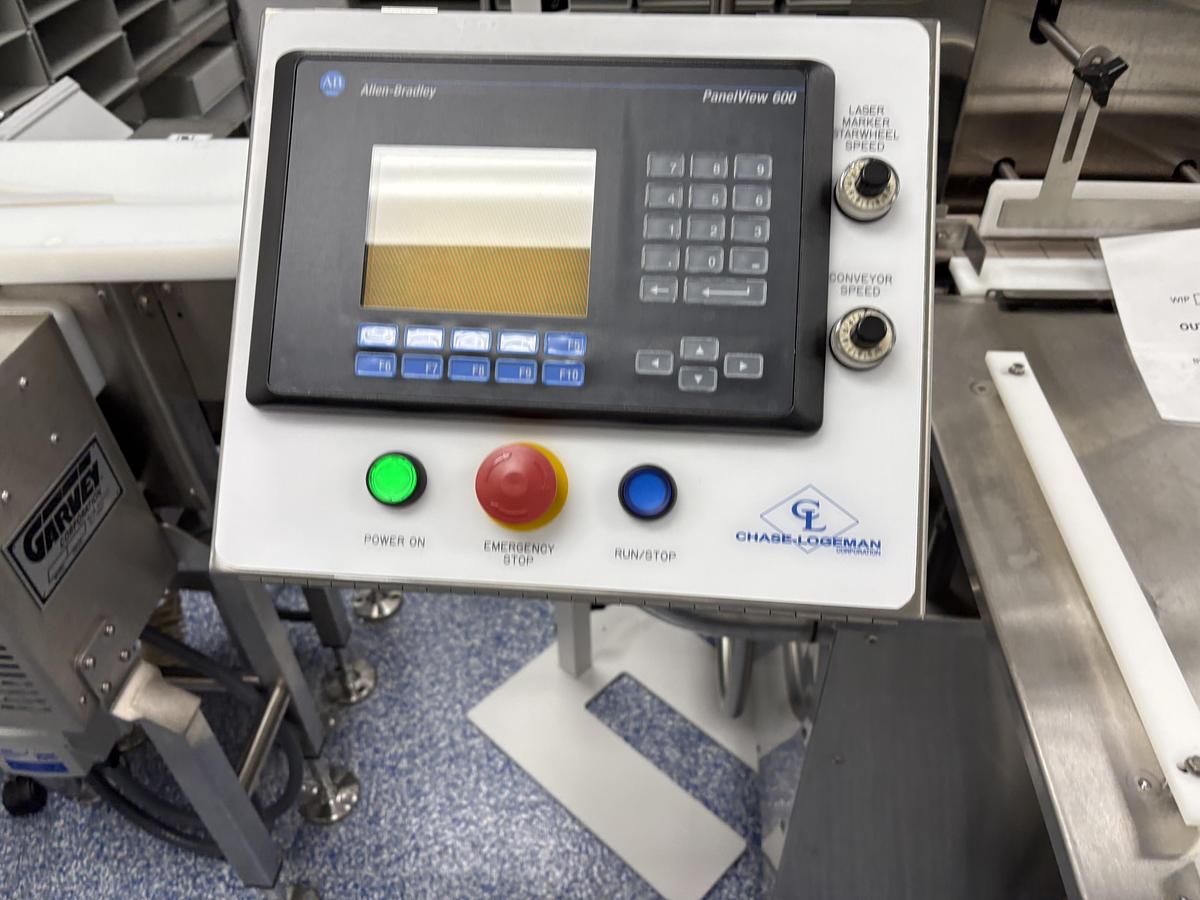

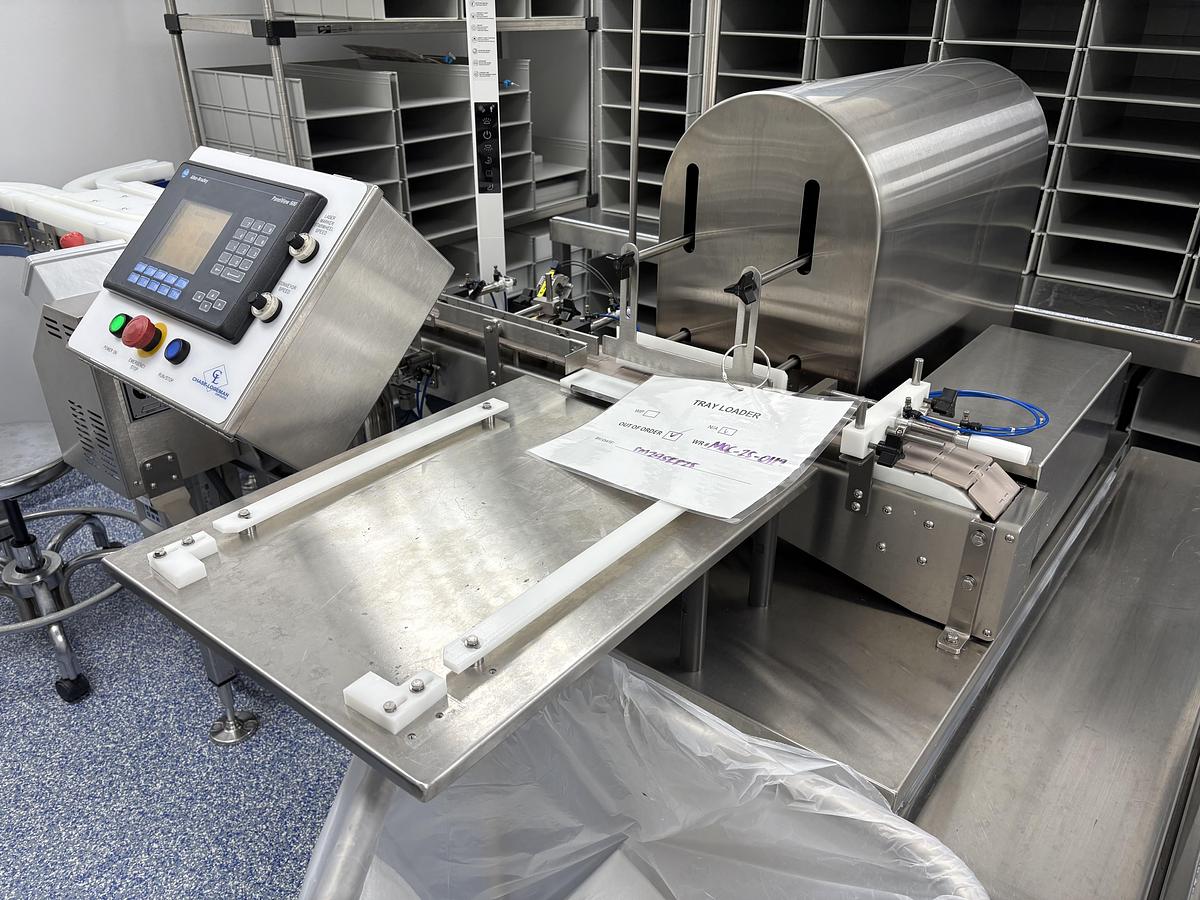

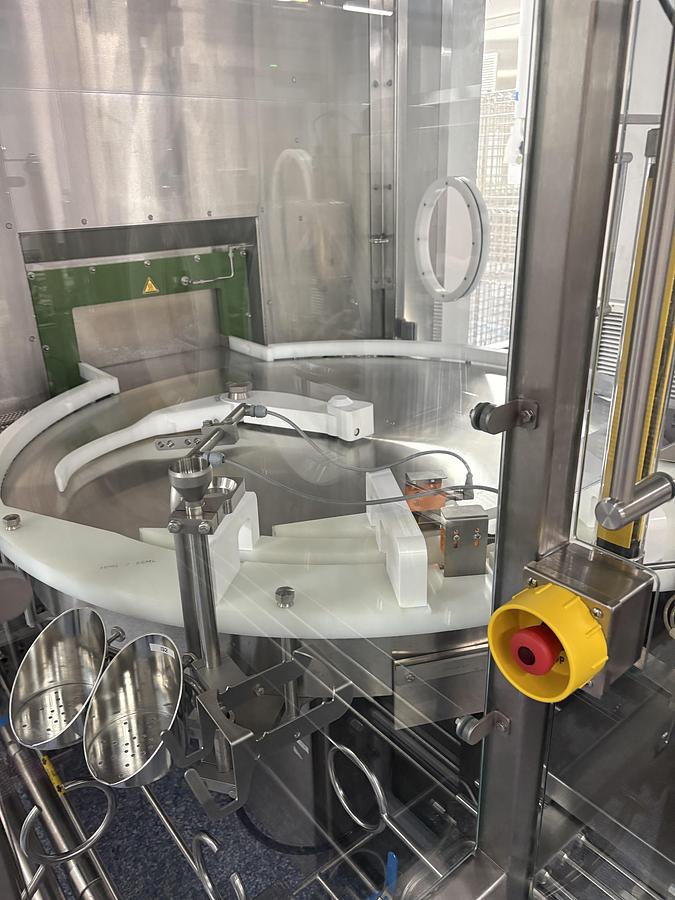

Chase-Logeman ATL-500 Automated Tray Loader

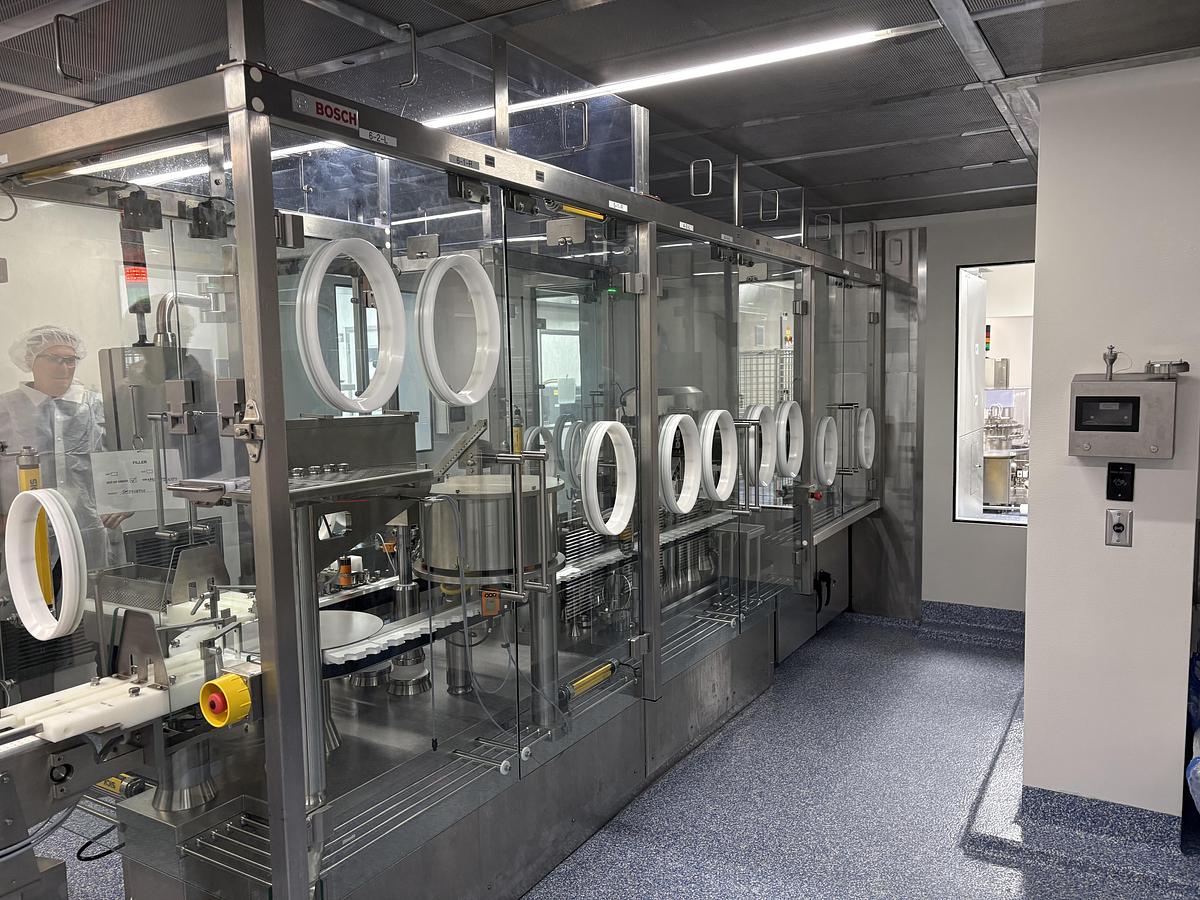

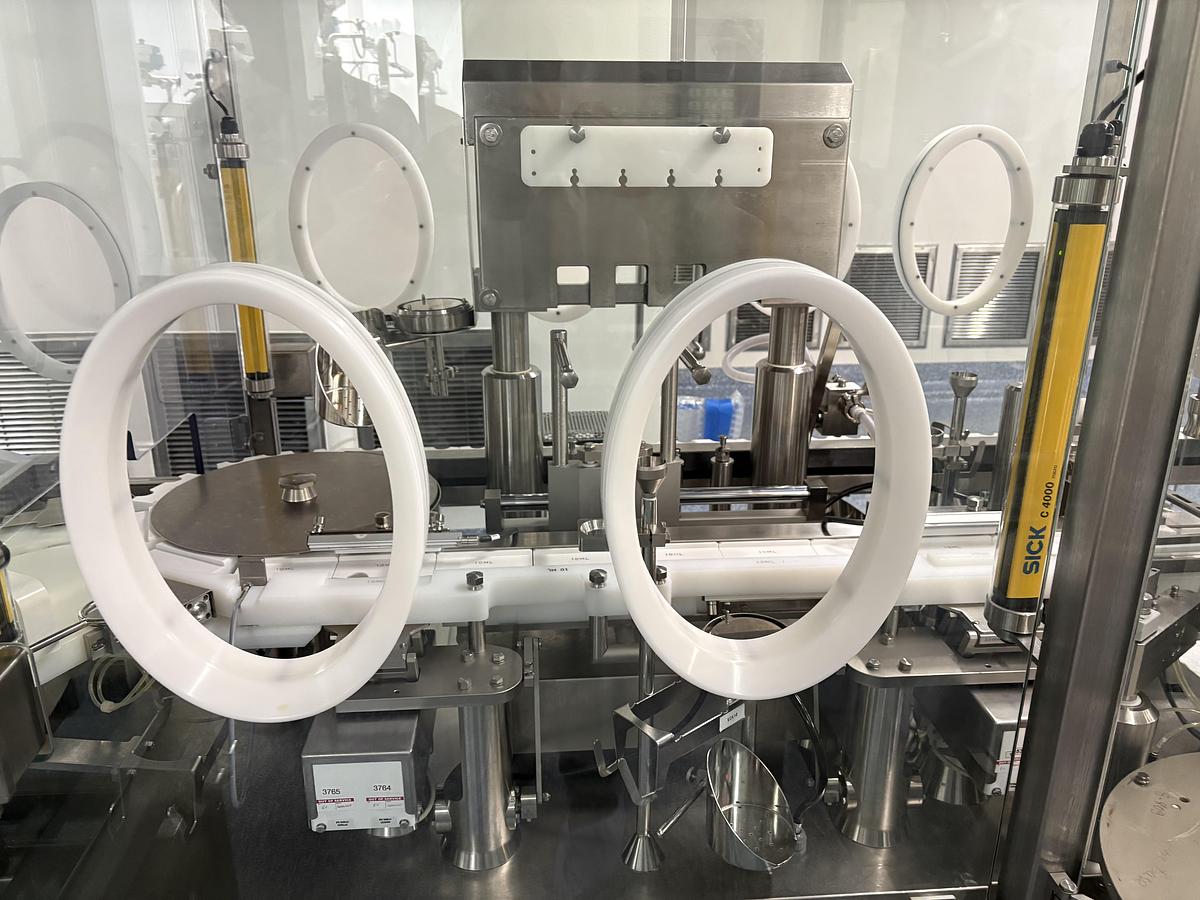

Passive RABS

• Glass panels with glove ports
• Door system with safety sensors

Line design speed: system design up to 150 vials / minute

Full documentation package including O&M manuals and FAT testing documents

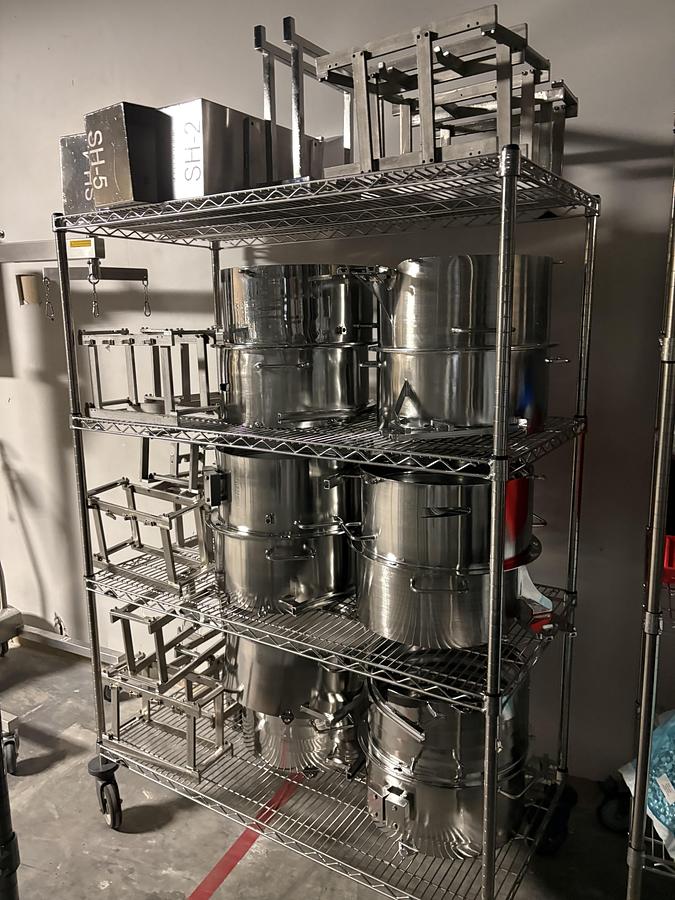

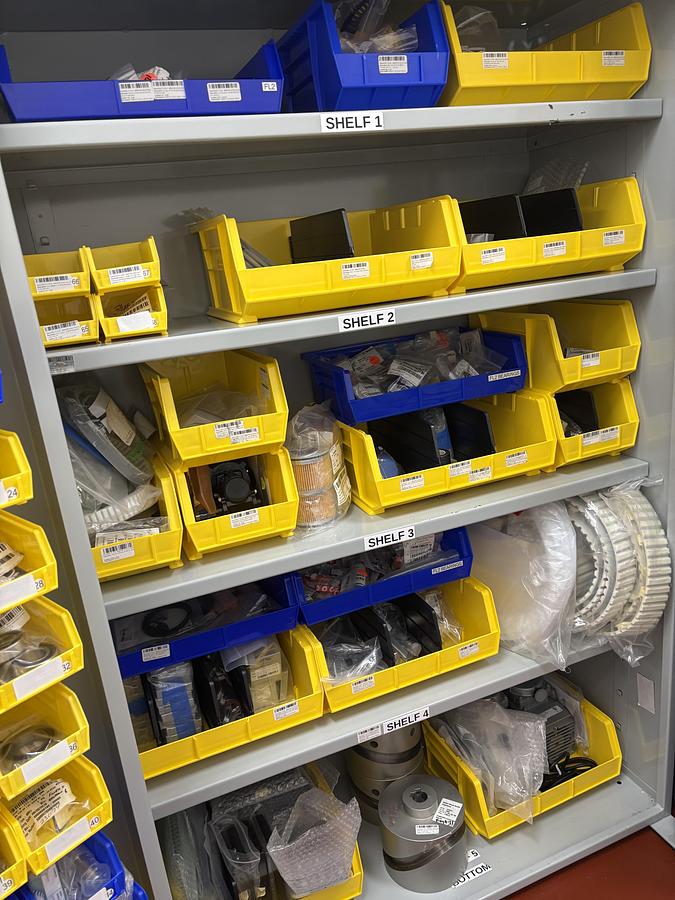

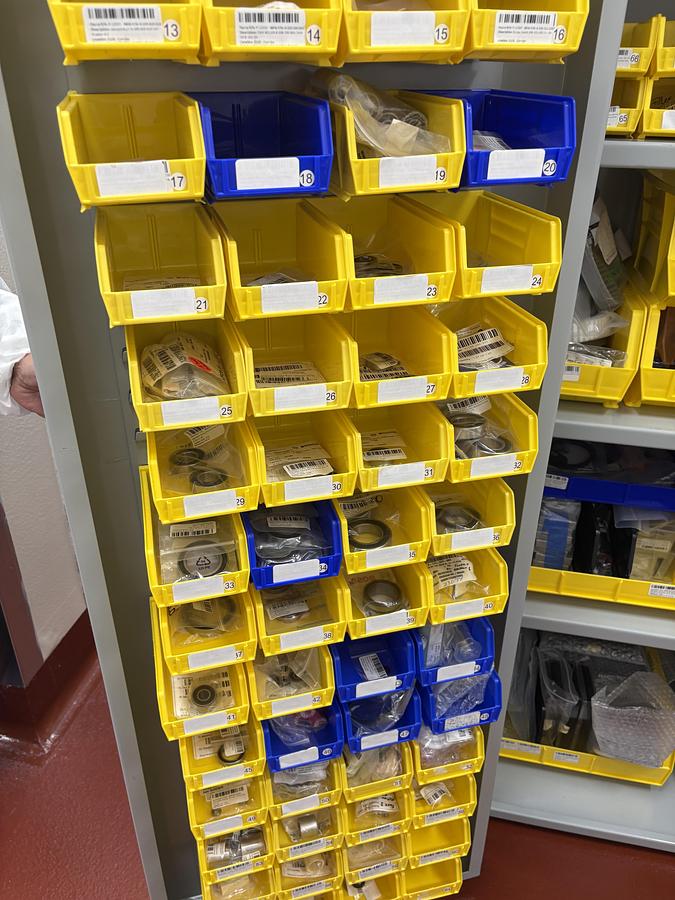

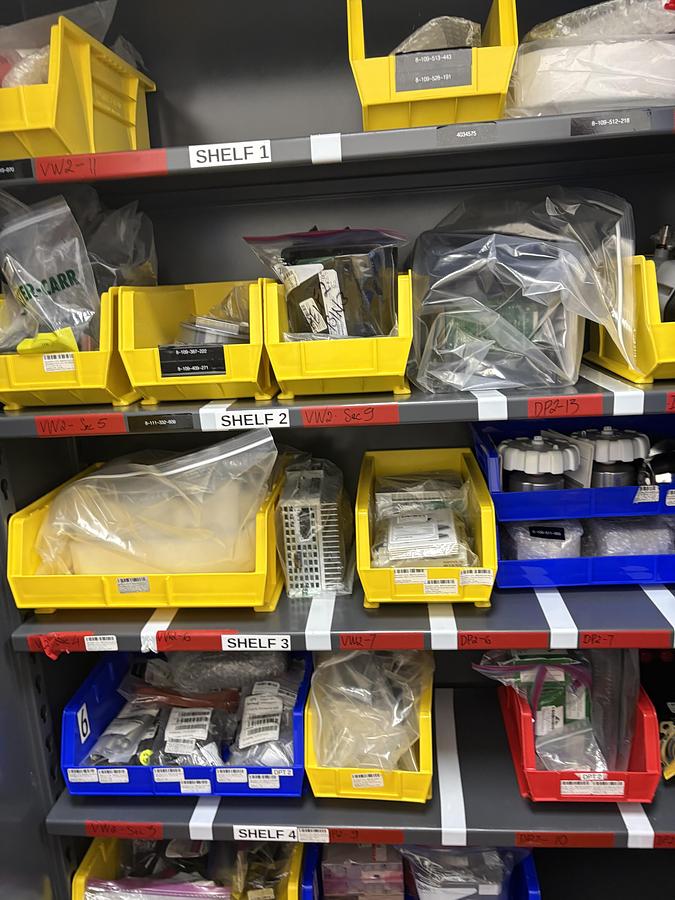

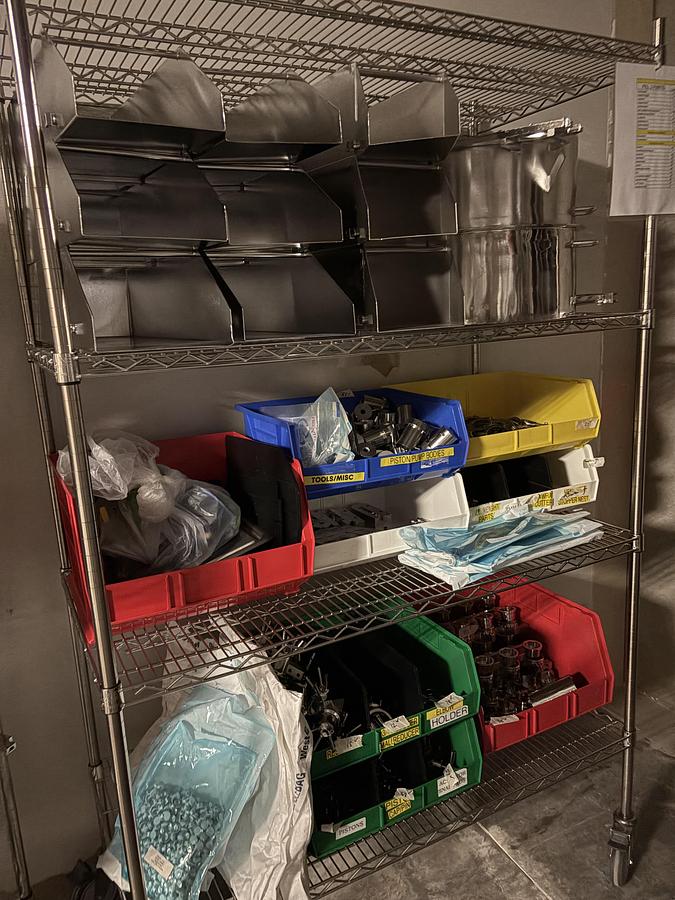

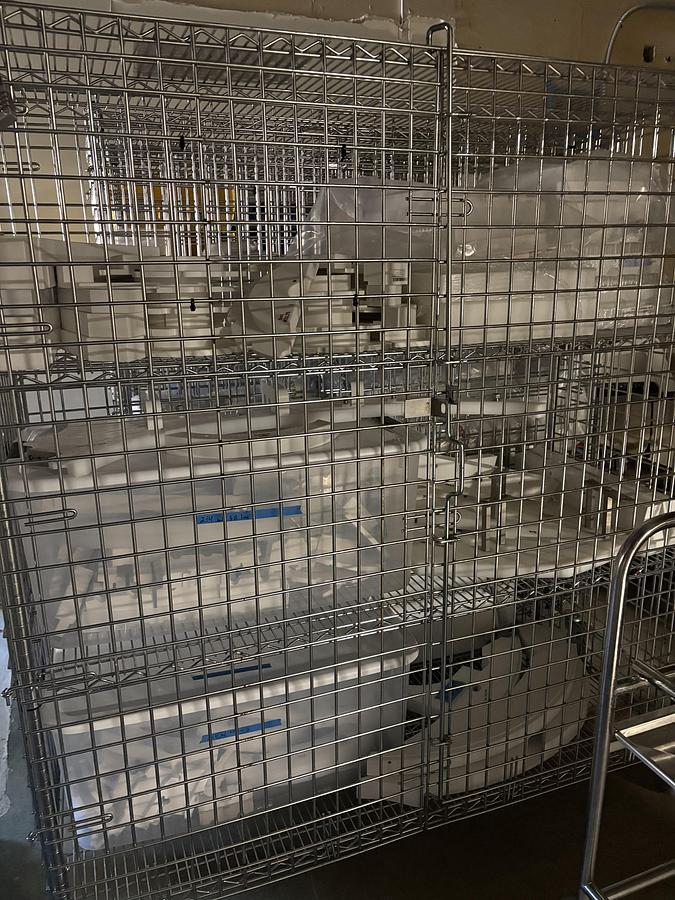

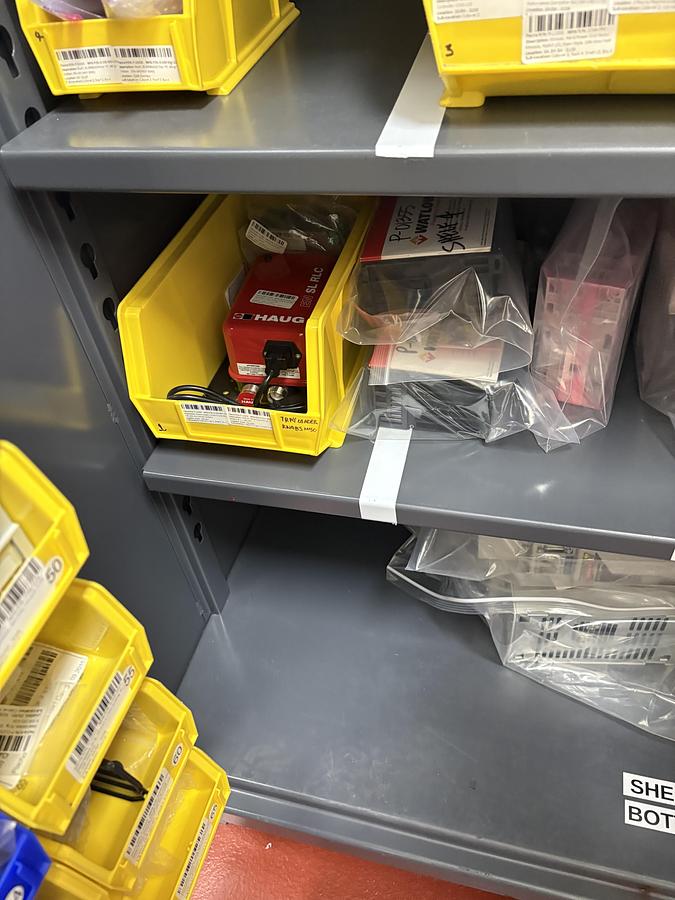

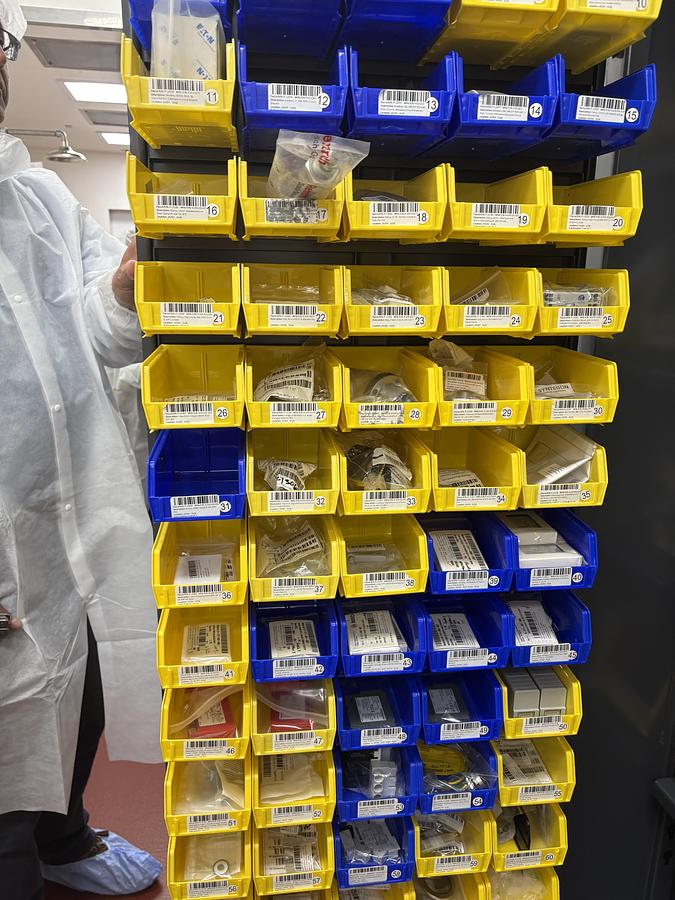

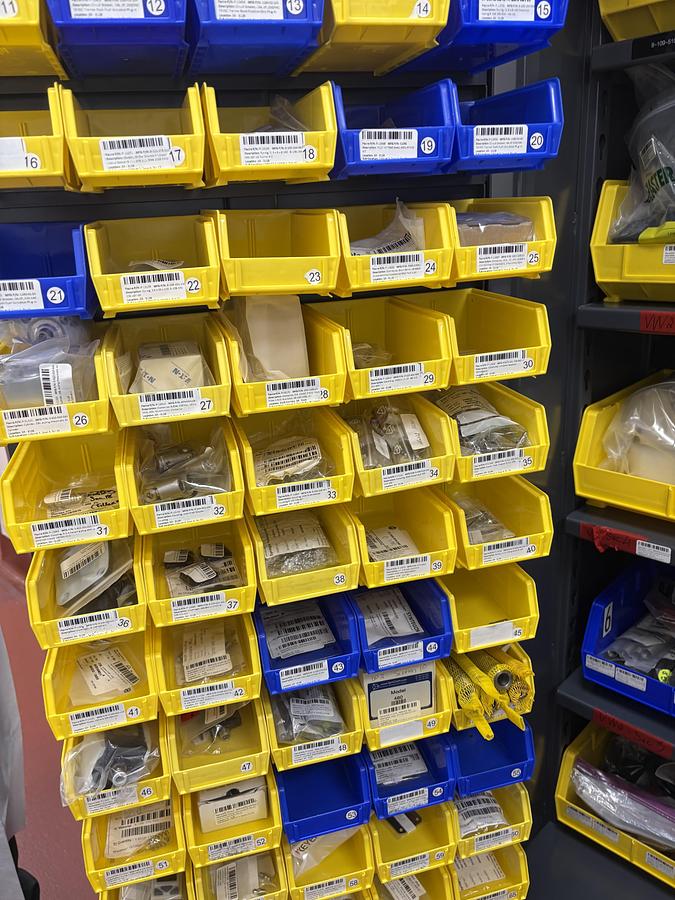

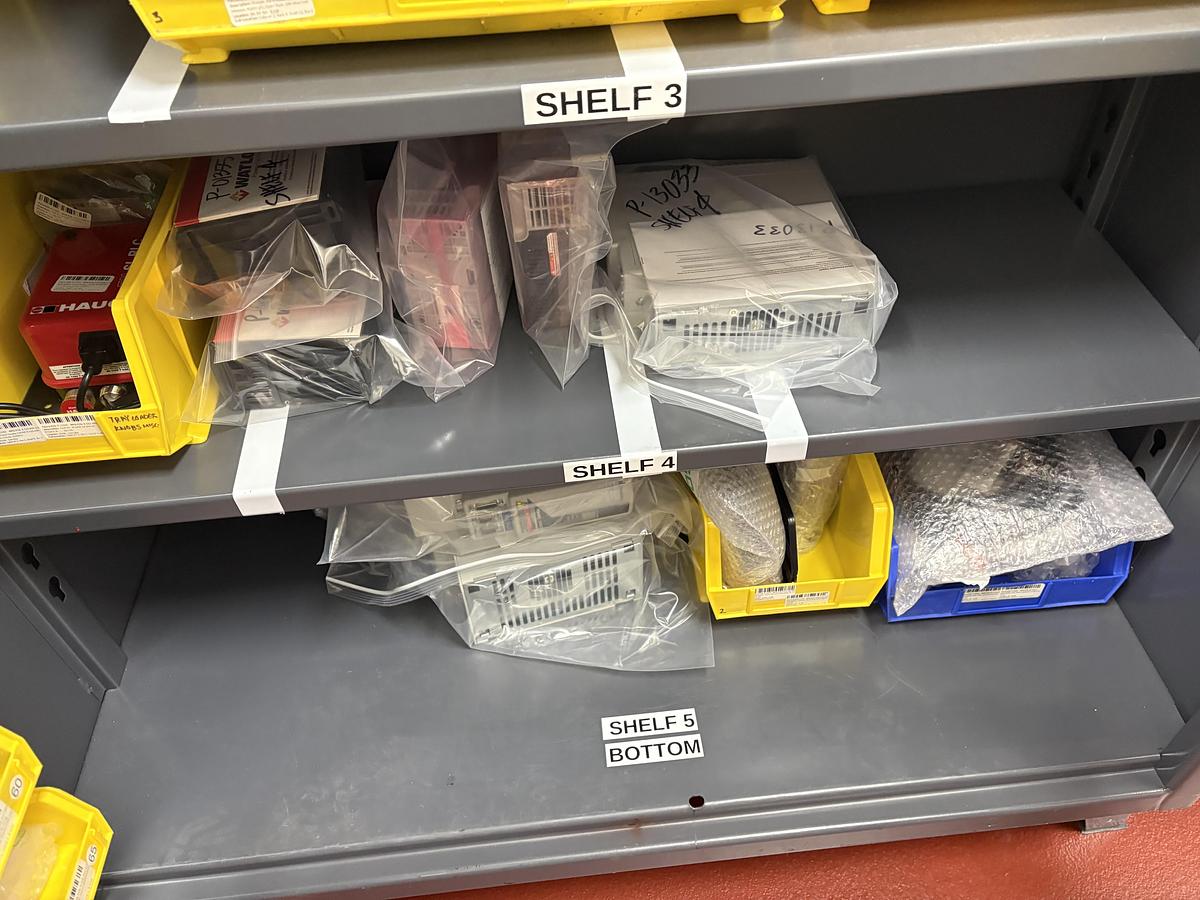

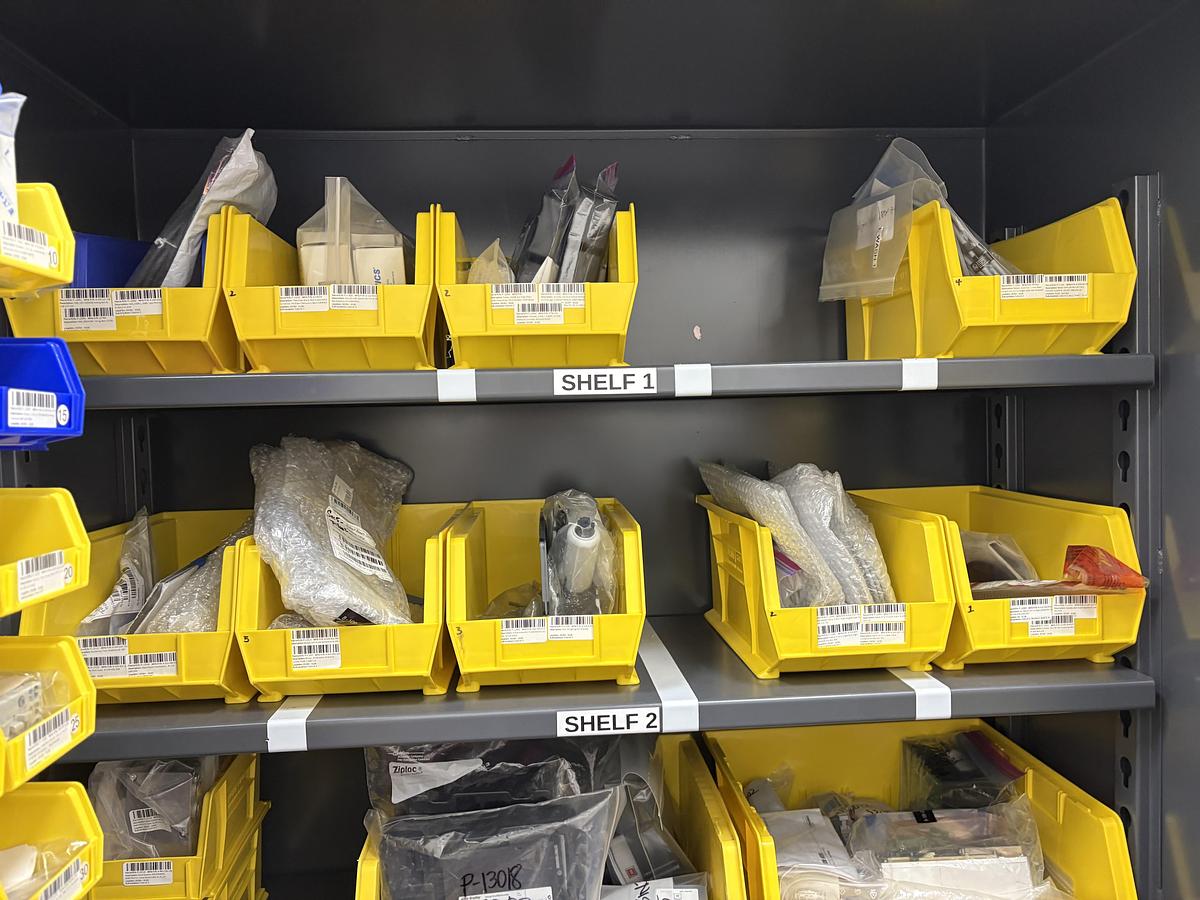

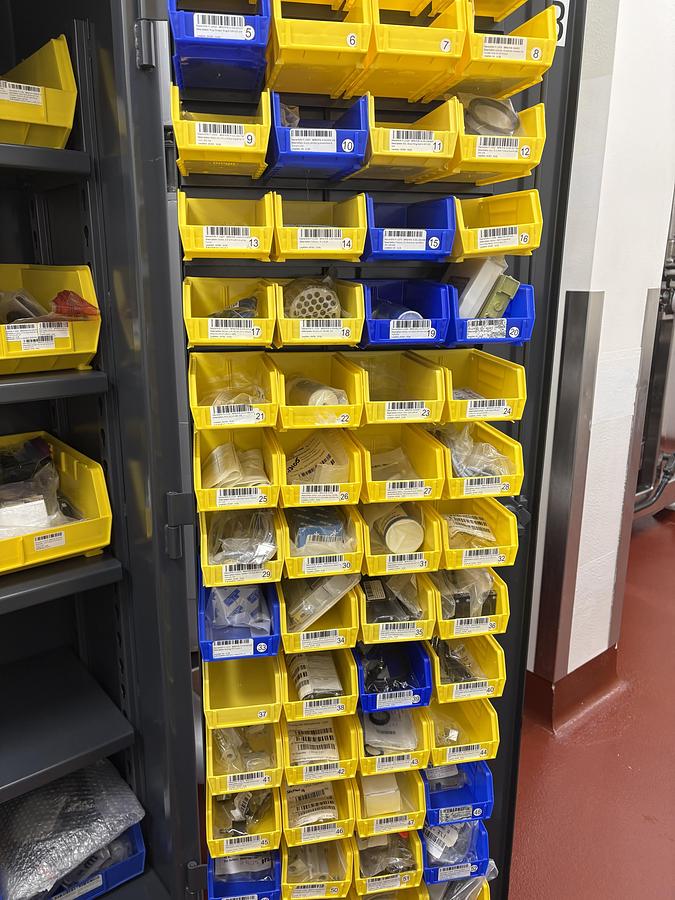

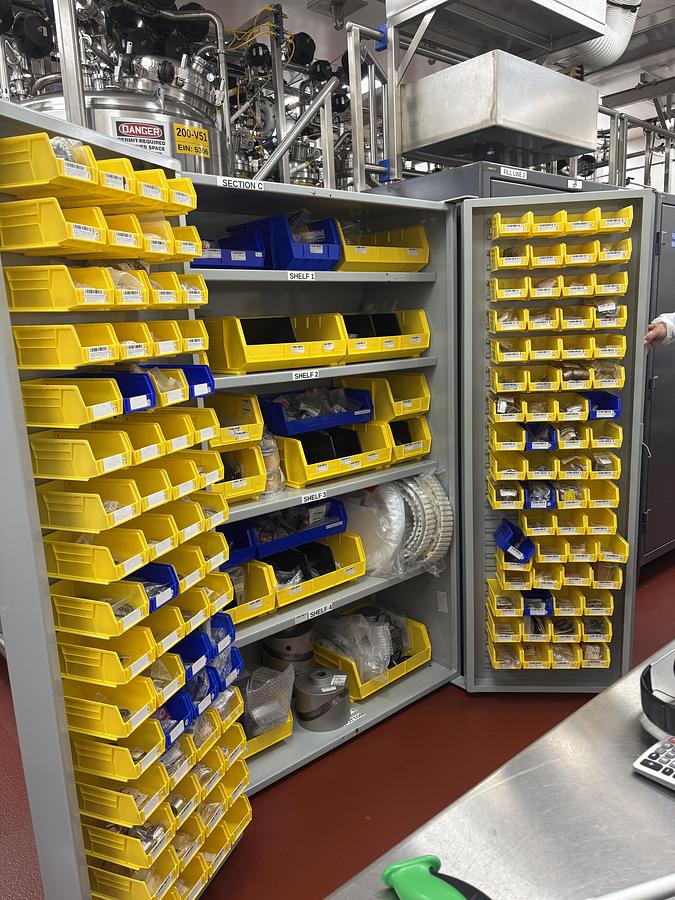

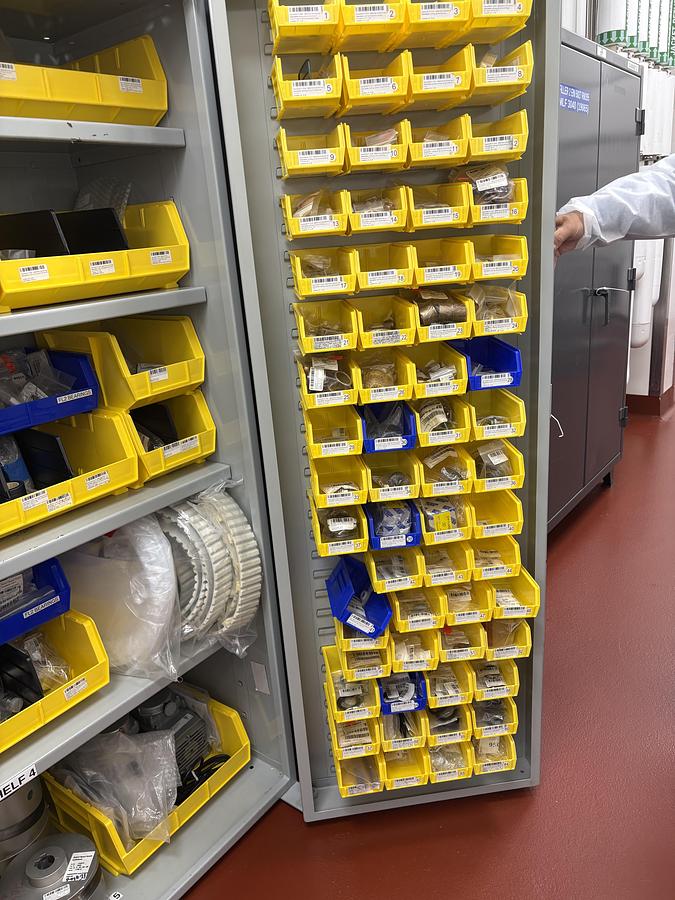

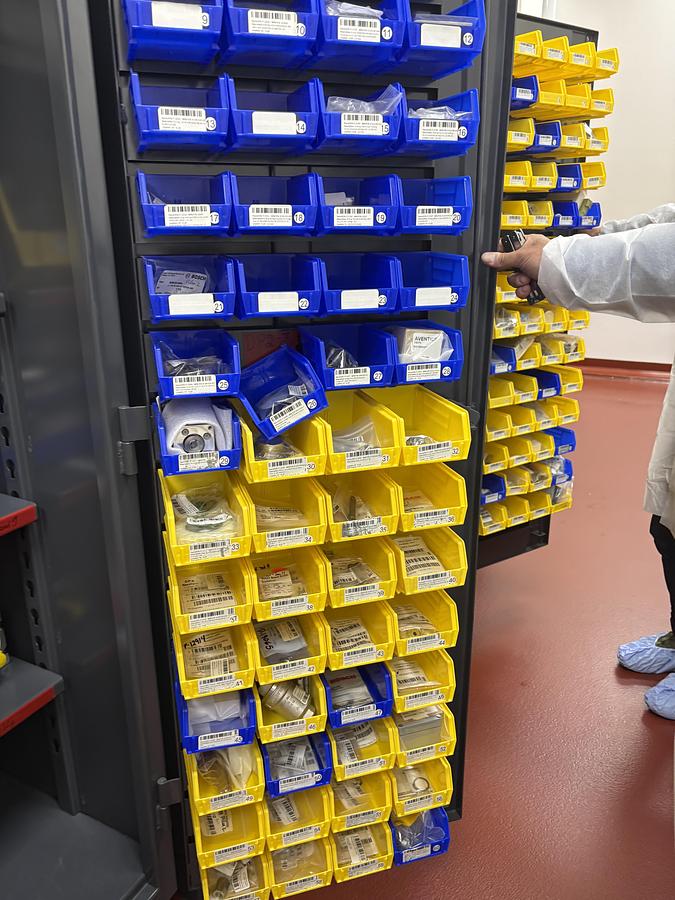

Full set of spare parts

Put into commercial service 2016 / Decommissioned March 2026

Consistent history of use and preventative maintenance

FDA filed and approved / reviewed during several on-site FDA audits

Purpose for selling: no longer needed, acquired higher speed alternative line

Still installed - ready for immediate inspection

Containers and closure types run on this equipment :

a.      Vials:

·       10 mL (23.75 mm OD)

·       20 mL (23.75 mm OD)

·       2R ISO vial (16 mm OD)

·       4R ISO vial (16 mm OD)

b.      Stoppers:

·       13 mm rubber stopper (12.7 mm x 6.2 mm) – vibratory hopper and feed bowl / track system

c.      Seals:

·       Aluminum skirt crimp cap (15 mm x 7.8 mm) with plastic flip off – vibratory hopper and feed bowl / track system

Quality control features :

Sensors: vial infeed min/max w/ presence sensor, low vacuum sensor, missing / high stopper

Check weigh: (2) 100% tare scales; (2) 100% gross scales

Reject station: for weight, stopper and cap misplacement, fallen vial (infeed turntable) chute

Environmental: locations for non-viable laser particle counters (not included) and infrastructure for viable micro plate heads (not included). Divider between infeed turntable and filling station. Divider between filling/stoppering and crimp station.
