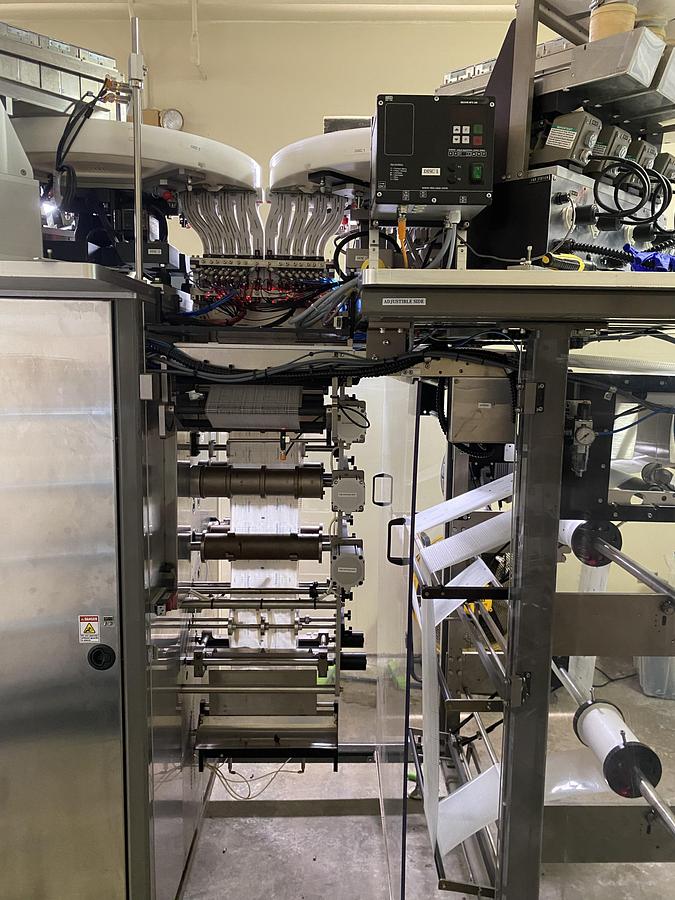

Wrapade Model V-612 Vertical Custom Pouch Packaging Machine

Used Wrapade Model V-612 Vertical Custom Pouch Packaging Machine

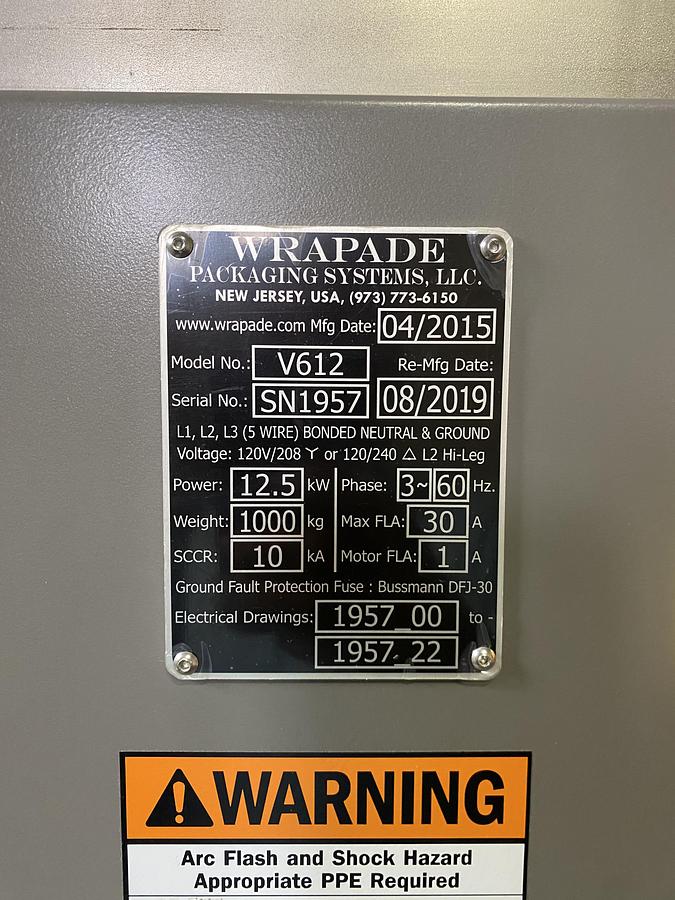

Originally Manufactured in 2015 - Remanufactured in 2019

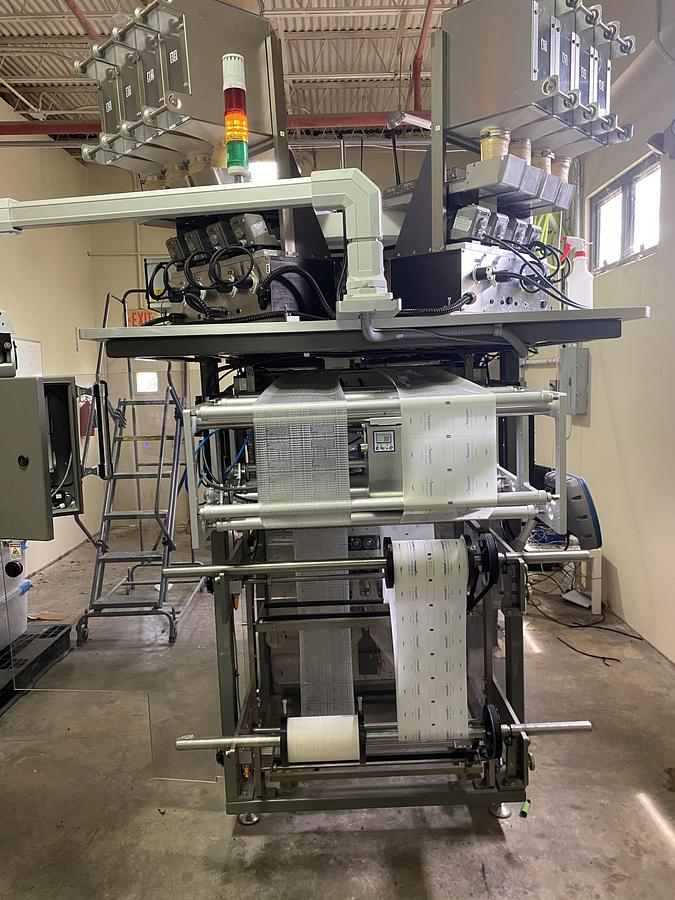

The Wrapade Model V-612 is a high-performance, 12-inch wide, 6-station vertical pouch packaging machine designed for efficient production of custom 4-side sealed pouches. Engineered for versatility and precision, this machine is ideal for packaging soft gels, capsules, caplets, and tablets in single or multi-product configurations.

Key Features

1. Custom Pouch Packaging:

• Produces variable-length pouches (programmable within a range) with precise centering of pre-printed designs using an advanced Photo-Registration System .
• Capable of producing pouch sizes with length adjustments via Servo Control .
• Designed for registered pre-printed film , ensuring consistent print alignment on every pouch.

2. High Output & Efficiency:

• Up to 30 cycles per minute (Custom) or 80 cycles per minute (Non-Custom) .
• Output:
• 60 pouches/min (2-up Custom configuration) or
• 320 pouches/min (4-up Non-Custom configuration) .
• Handles up to 16 products per pouch , depending on product size and pouch design.

3. Advanced Feeding System:

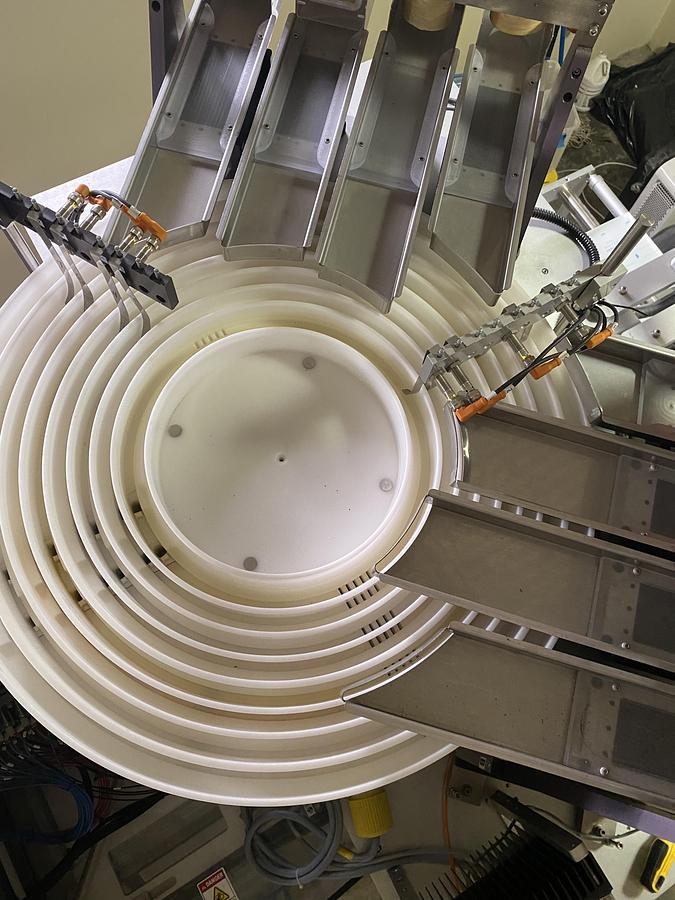

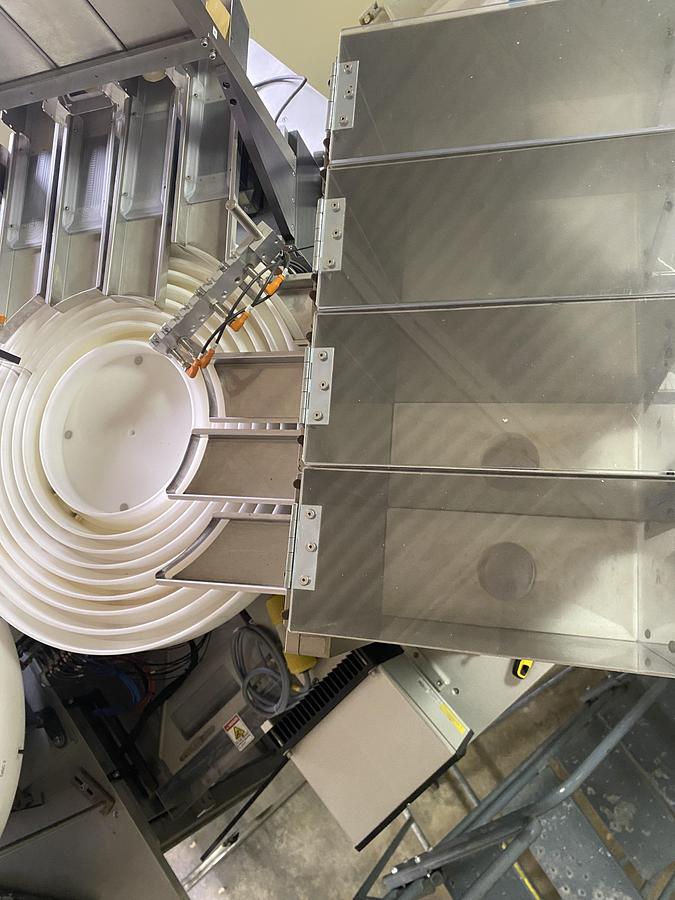

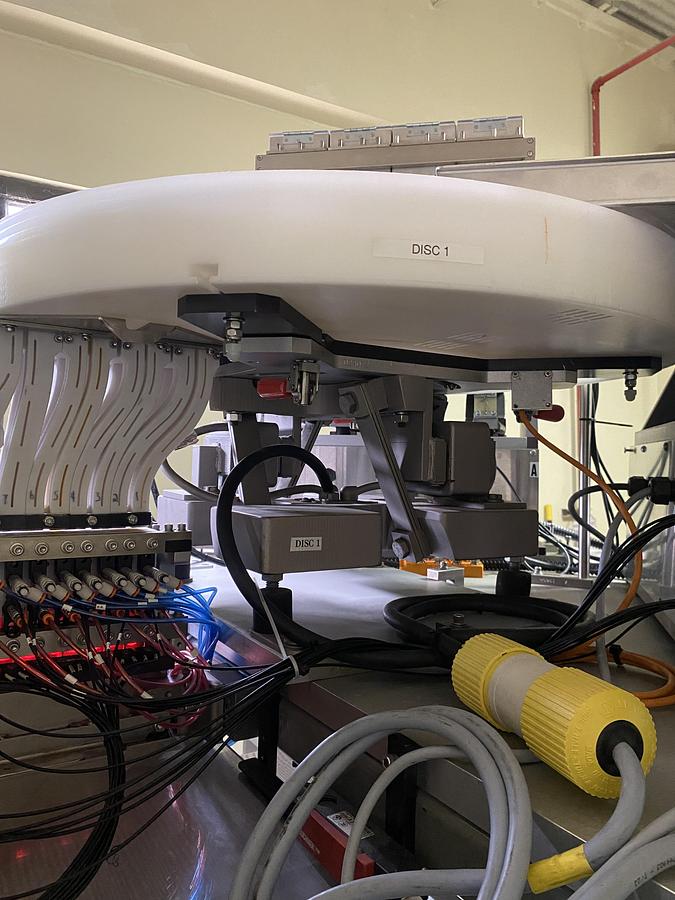

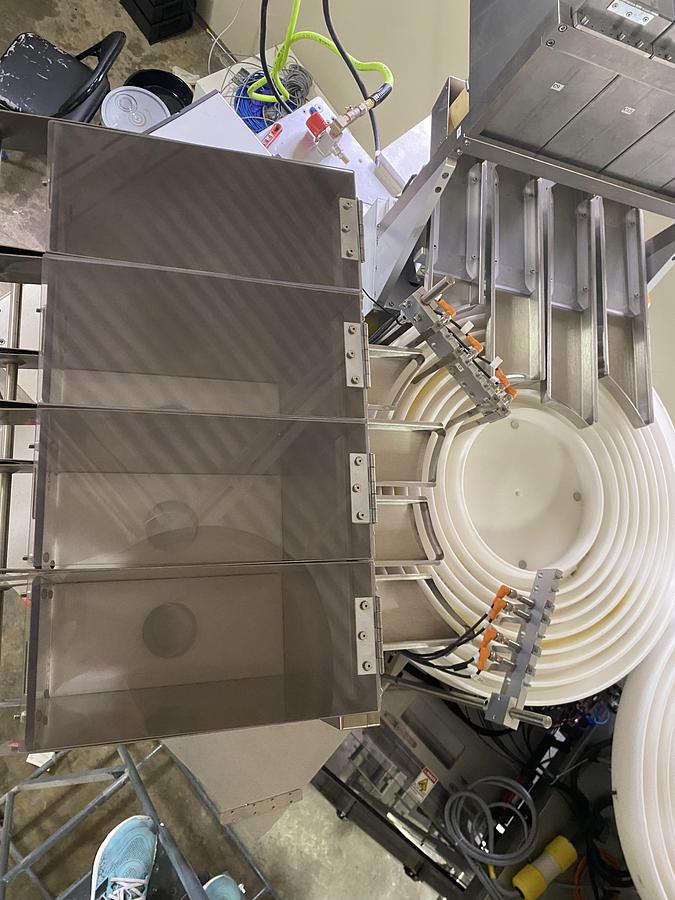

• Equipped with (16) Vibratory Pan Feeders and (2) Grooved Disc Feeders (28.5” diameter), ensuring balanced flow and orientation of products into the sealing assembly.

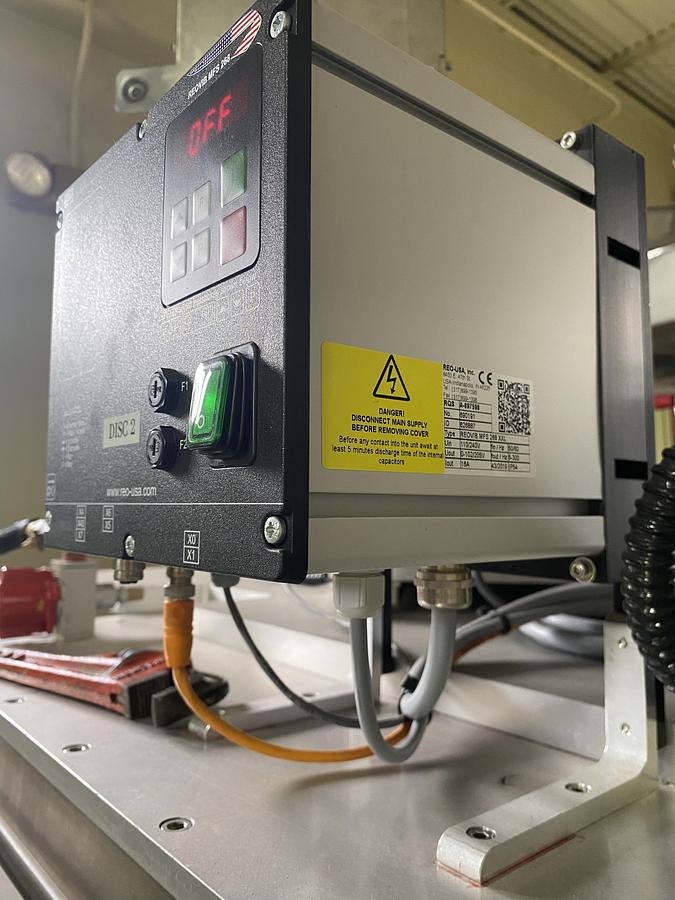

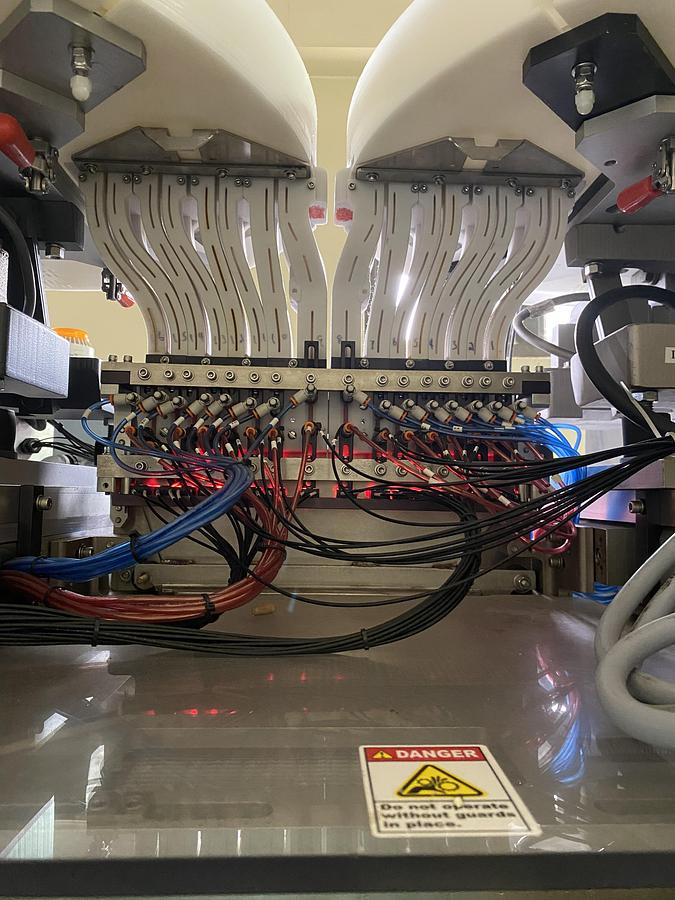

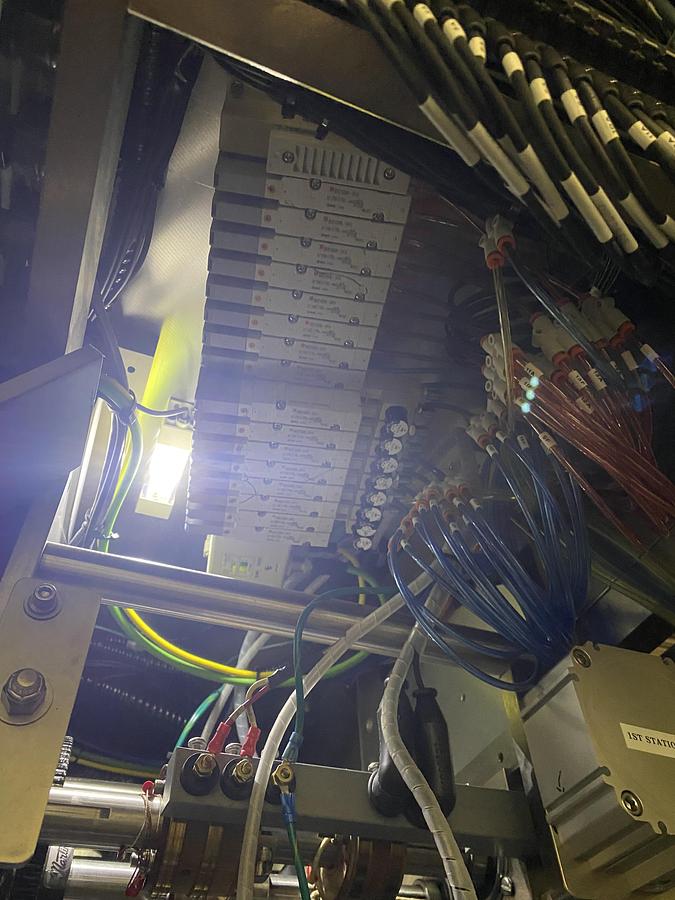

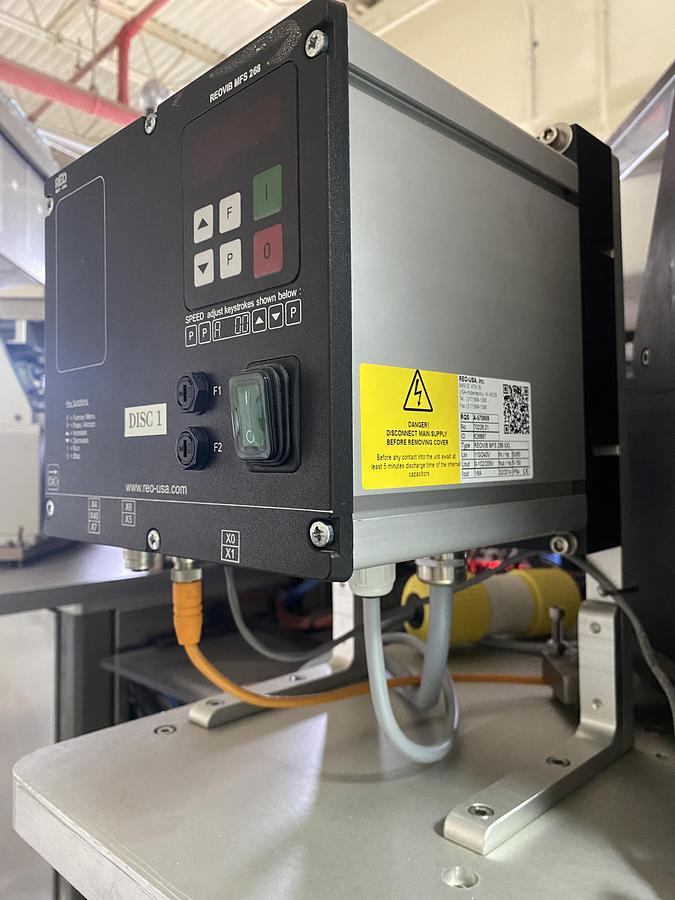

• Includes (2) Vibratory Disc Frequency Controllers and (64) Pneumatic Track Product Escapement Assemblies for synchronized feeding and changeover flexibility.
• Custom feed tooling includes stainless steel hoppers, track weldments, sifter pan inserts, and quick-change escapement systems.

4. Sealing Technology:

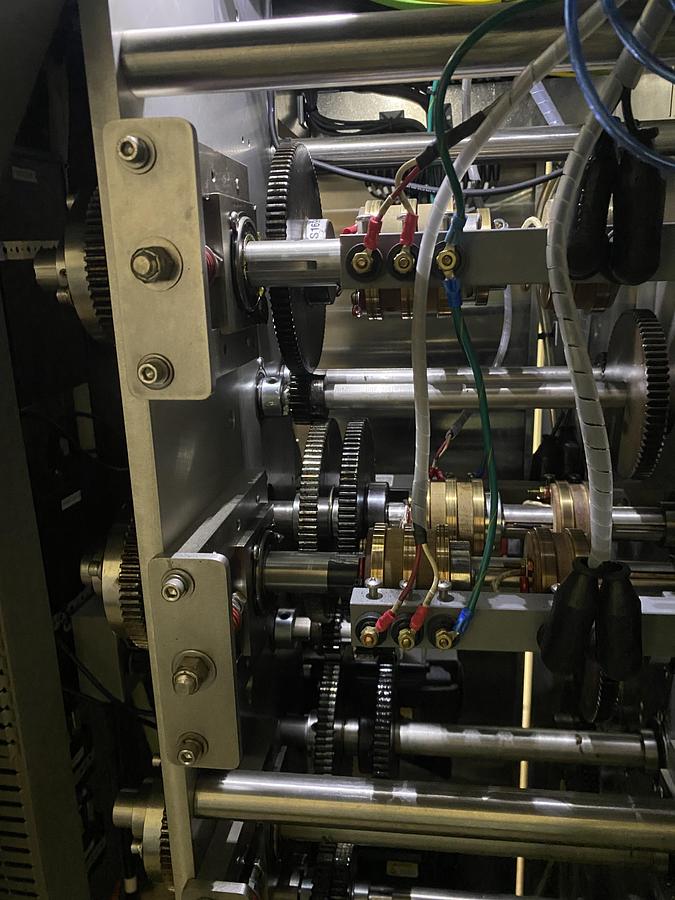

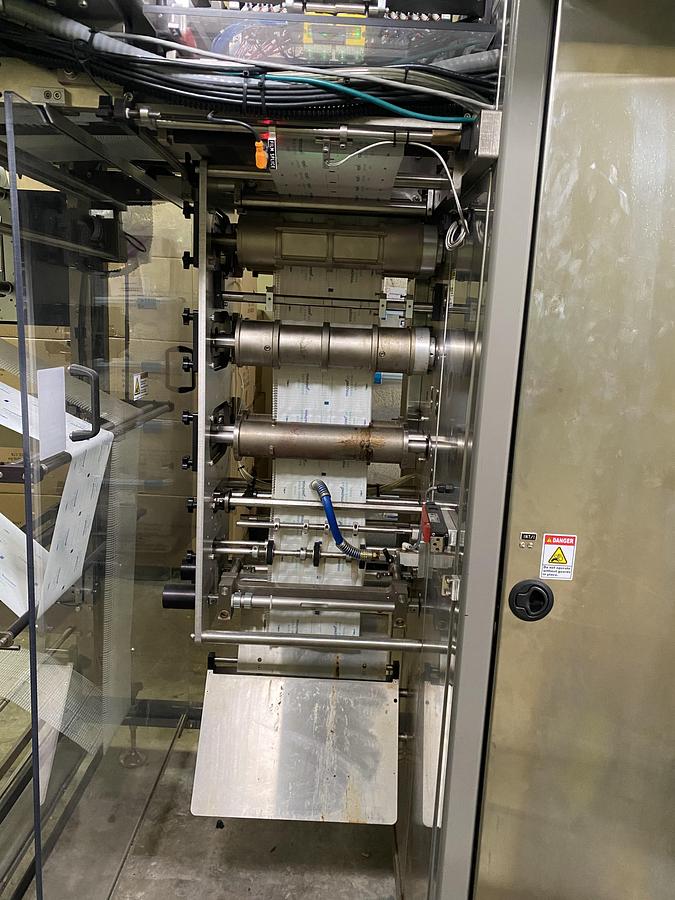

• 6-Station Sealing Head Assembly featuring:
• Interlocking Pyramid Sealing Pattern for enhanced seal integrity, heat transfer, and film meshing.

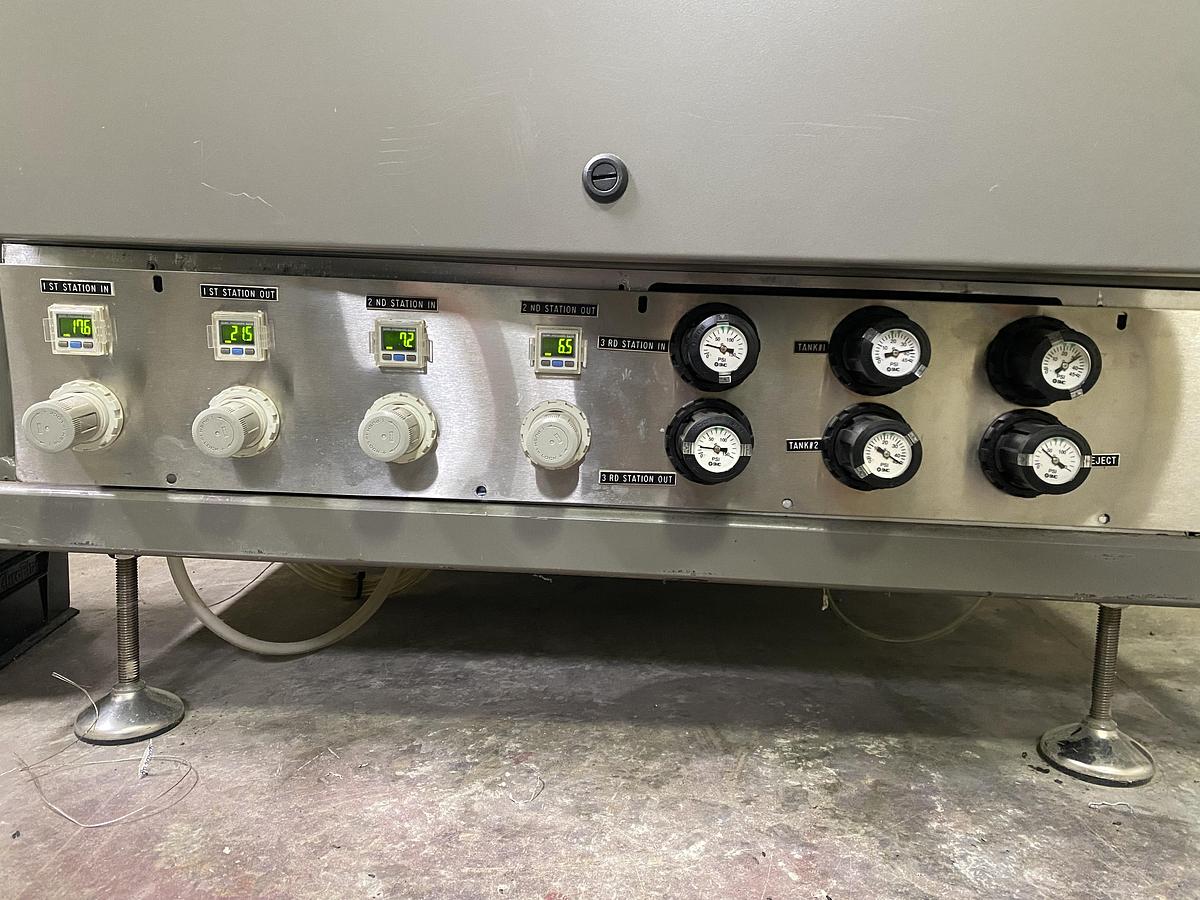

• Individual temperature controllers and air regulators for each sealing roll to ensure uniform pressure and easy validation.
• Cross Seal Rolls with a 12.04" circumference and 4 lobes for variable-length pouch creation.
• Side Seal Rolls for registered film applications.
• Horizontal Tear-Notch Die and Anvil for user-friendly pouch opening.
• Vertical Slitting Assembly to separate 2-pouch rows.

5. Film Handling & Tension Control:

• Film Unwind Assembly with both Single Film Roll and Dual Film Roll Mounting Shafts for versatile operation.

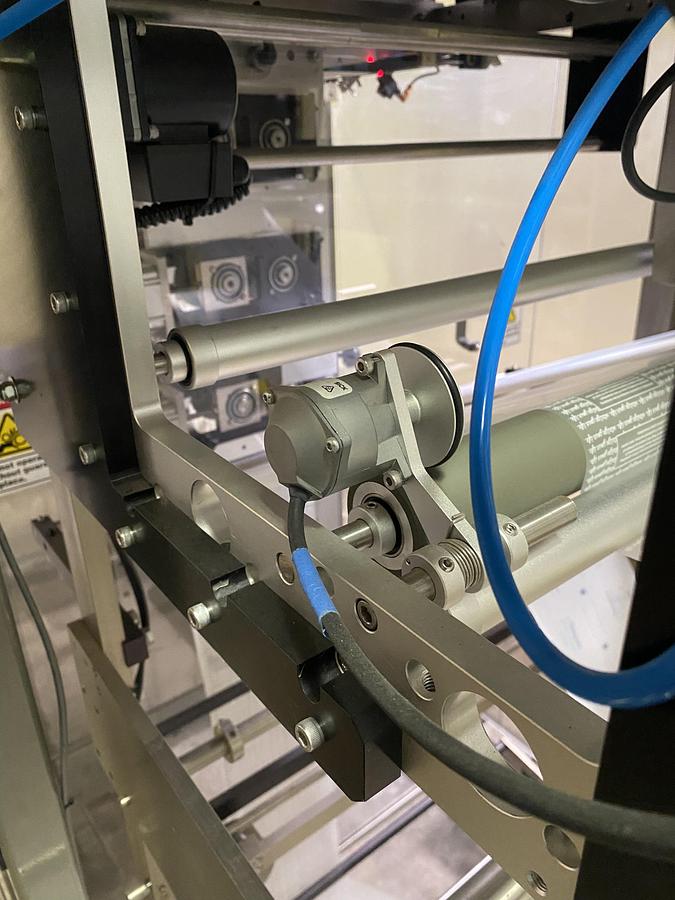

• Self-Adjusting Compensator Brake Mechanism ensures constant tension as the film roll diminishes.
• Compatible with almost all heat-sealable laminated films with 3" cores and up to 18" roll diameters.
• Interlocking pyramid design improves film tracking and minimizes slippage through sealing rolls.

6. Control Systems & Automation:

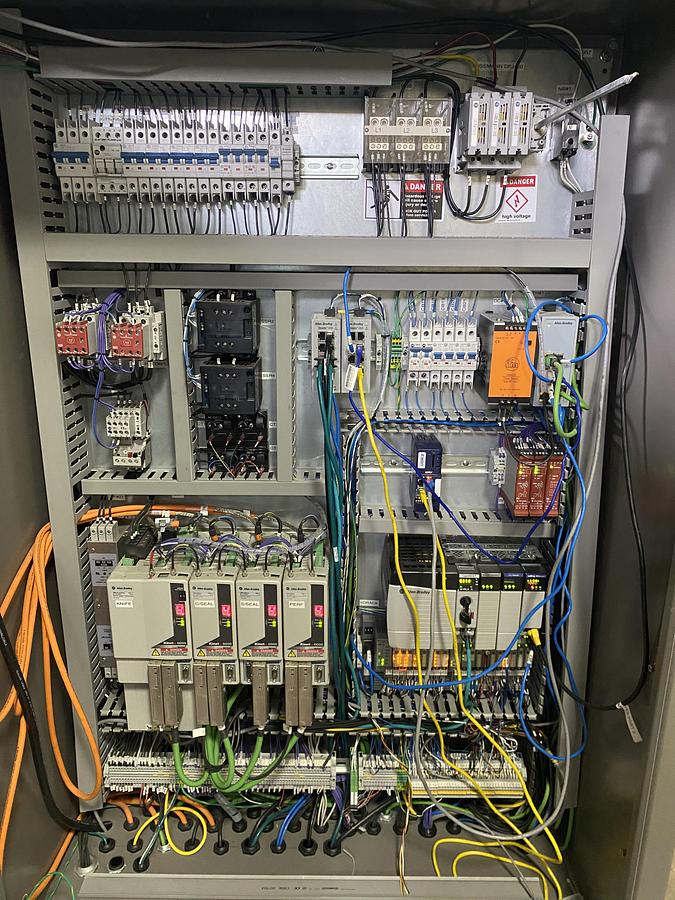

• Rockwell ControlLogix Motion Controller for seamless integration and performance monitoring.

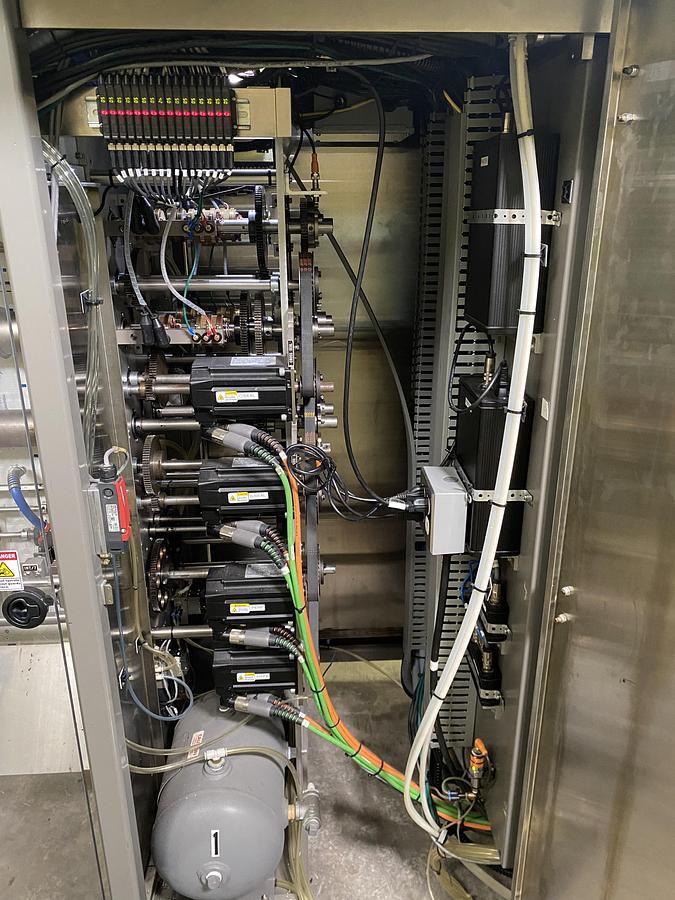

• Kinetics 6000 Servo Drives for precise control over pouch length and cut-off operations.

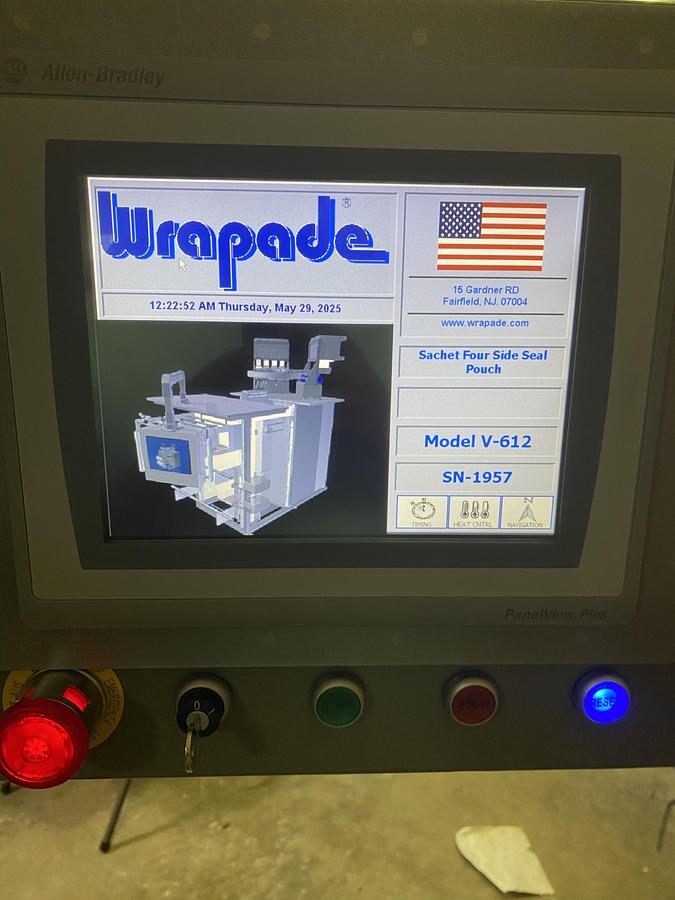

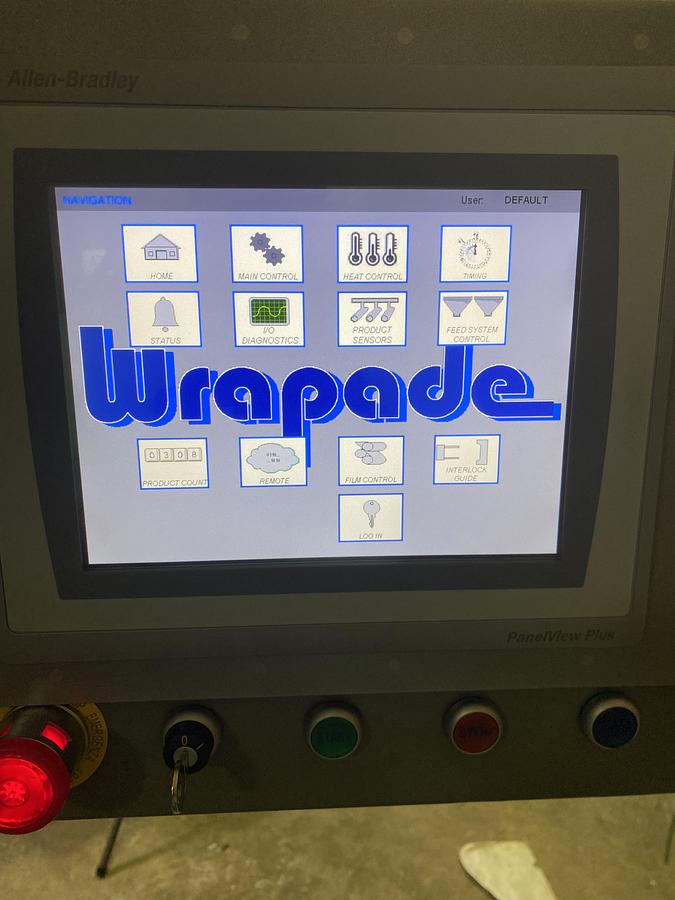

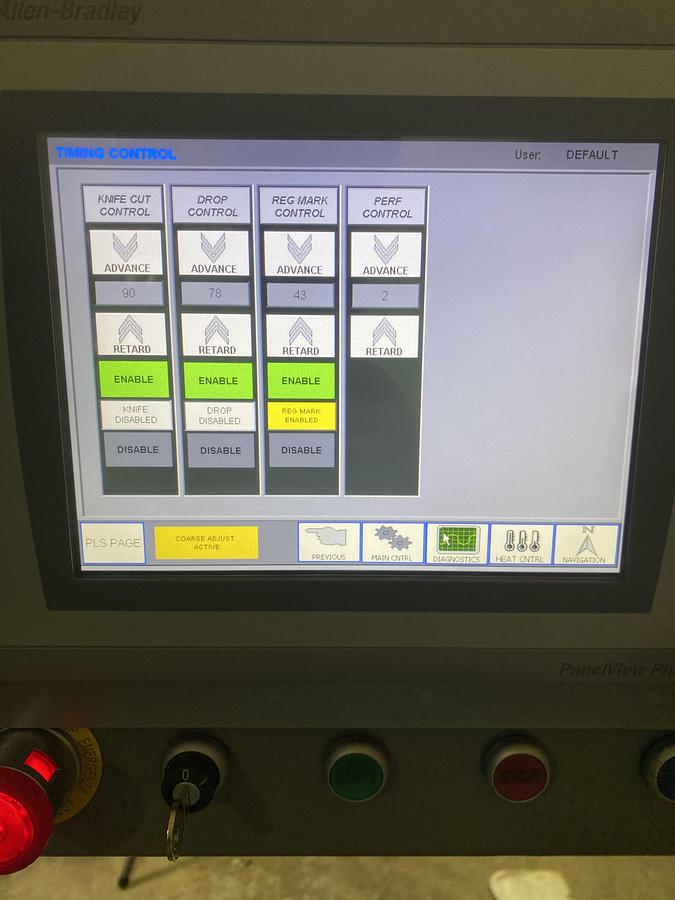

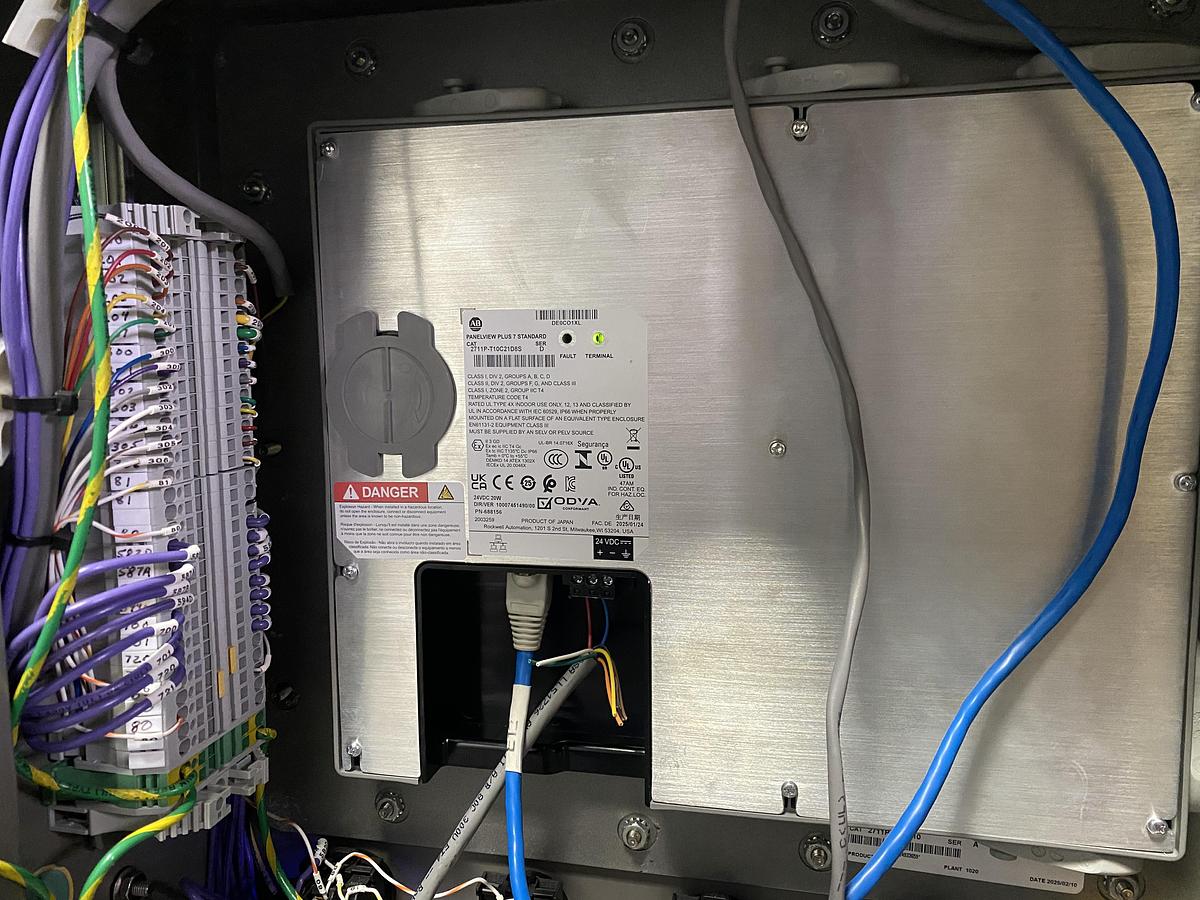

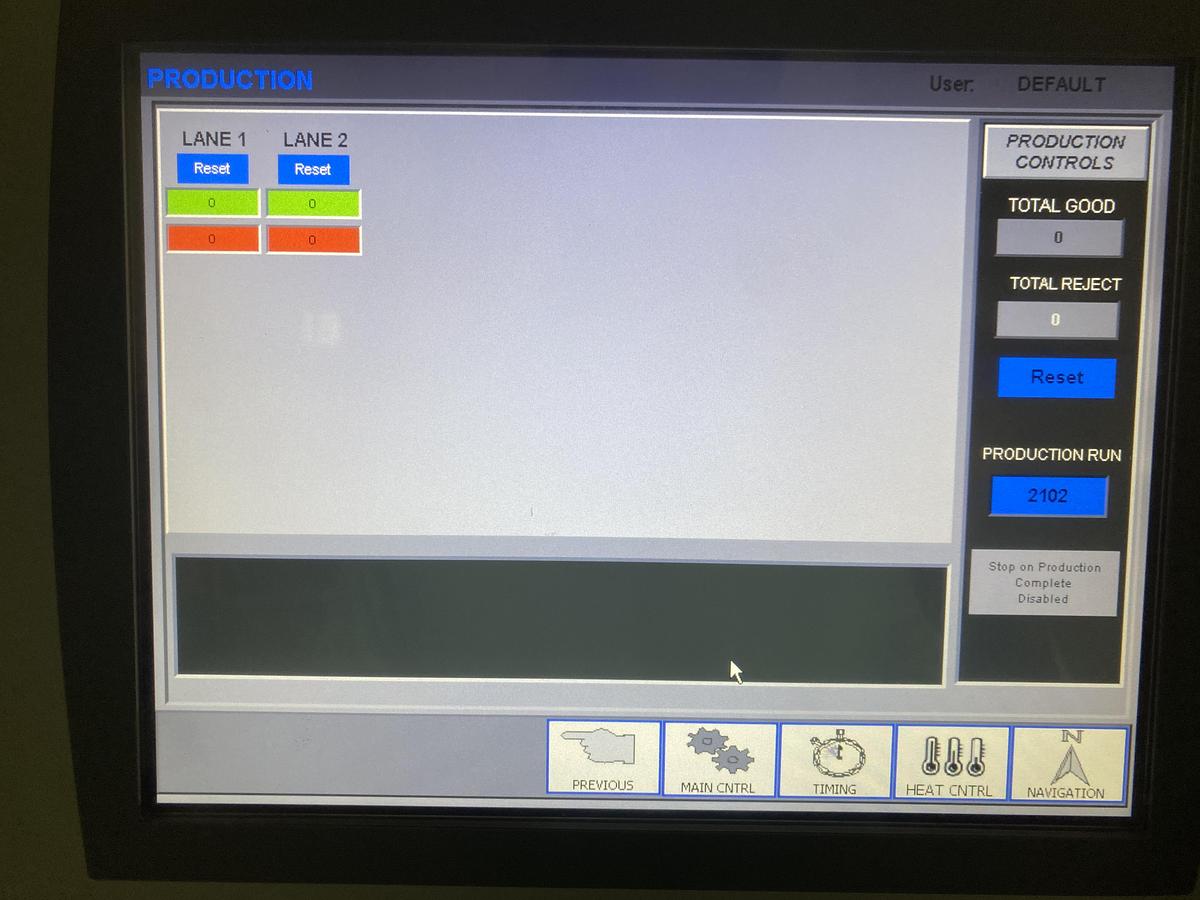

• PanelView Plus 1000 HMI with password protection for intuitive operator interface and settings management.
• Ethernet/IP Communication and EWON Remote Router for remote programming and diagnostics.
• Solid-State Temperature Controls for sealing rollers.
• User-configurable controls for multi-pouch functions and trigger signals.
• Production counter and rate monitor for real-time output tracking.

7. Safety & Compliance:

• Category 3 Guard Interlock Package with electrically interlocked stainless steel and Lexan safety guards.
• Illuminated Emergency Stop Buttons for immediate shutdown in case of emergencies.
• Low Air Pressure Sensors , Missing Product Detection , and Low Film Sensors for error-free operation and automatic rejection of defective packages.

8. Machine Construction & Durability:

• Constructed from powder-coated tubular steel , stainless steel , anodized aluminum , and FDA-compliant plastics.
• Three-Bearing Support on all sealing head shafts for added strength and longevity.

9. Additional Components:

• Servo-Driven Cutoff Knife Station for accurate pouch separation.

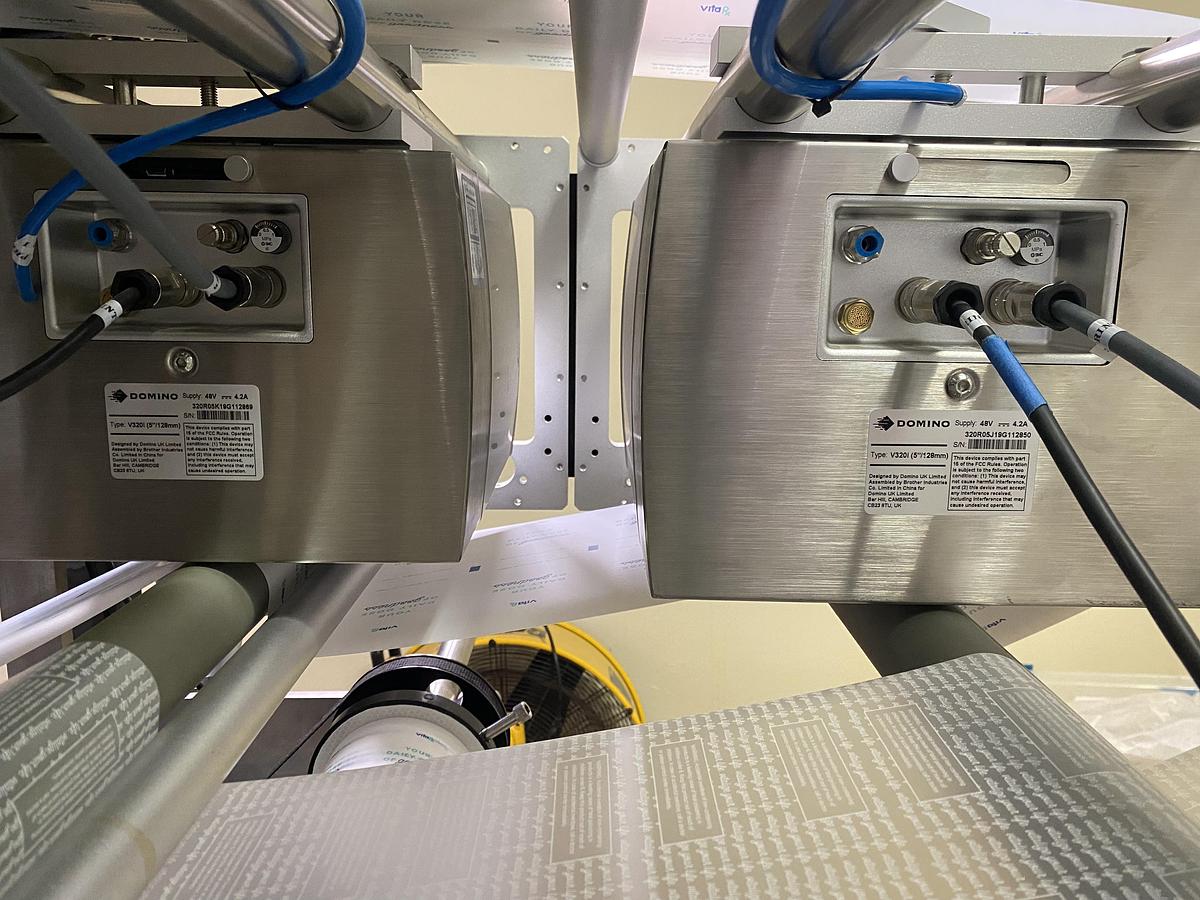

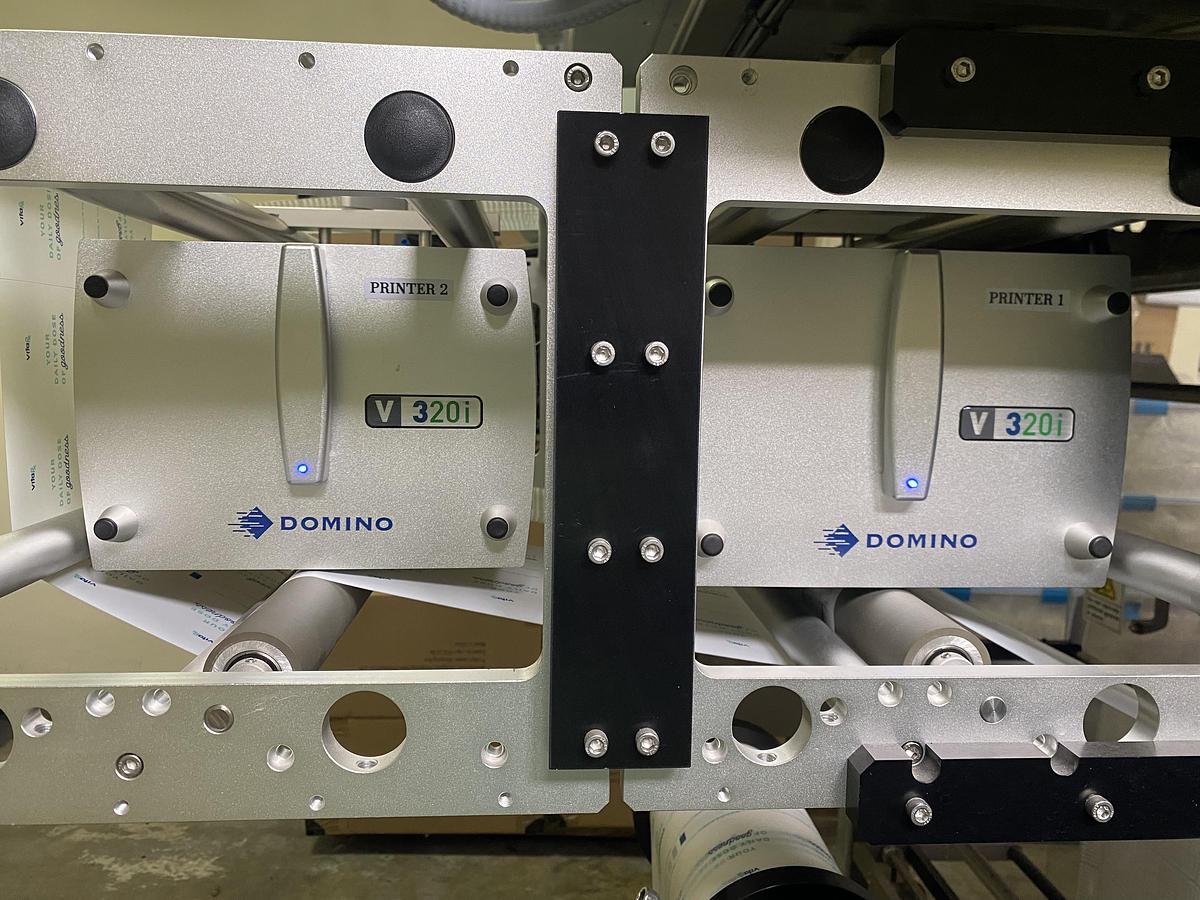

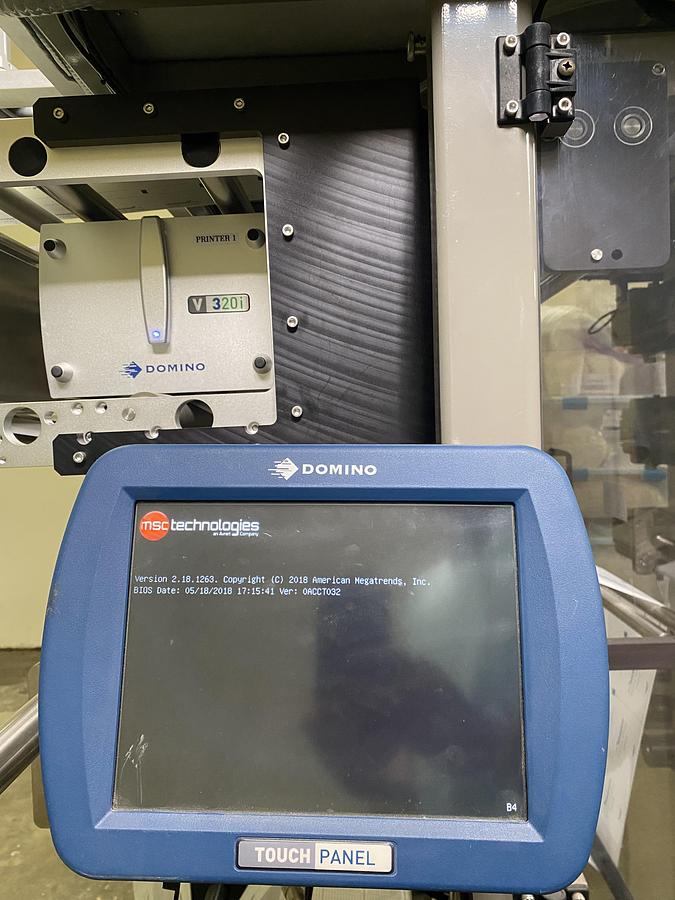

• Domino V320i Continuous Motion Thermographic Printers (2 units) for package labeling, including software for barcode generation, graphic integration, and database connectivity.

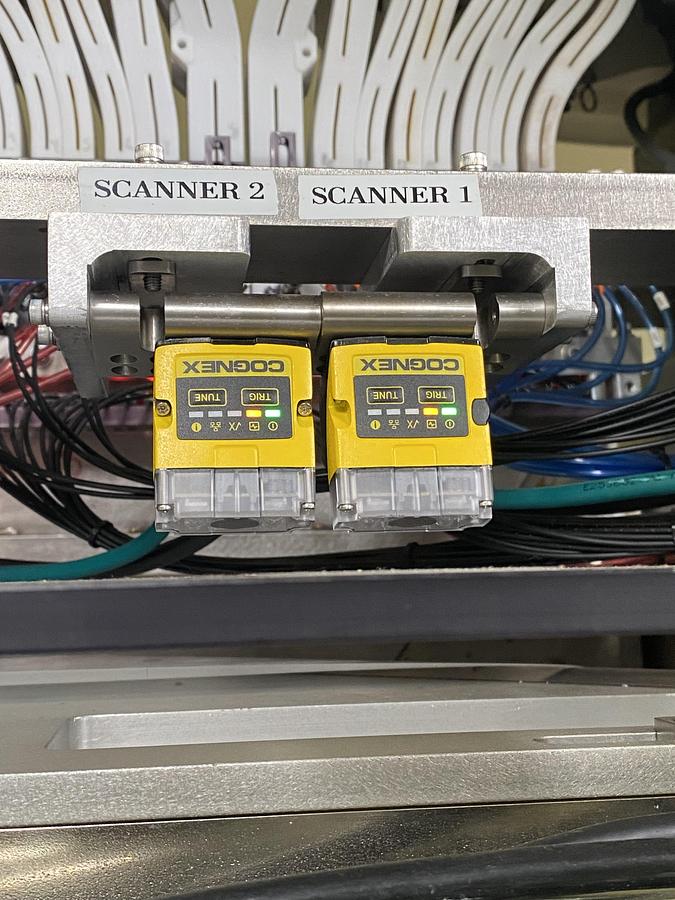

• Cognex Visual recognition camera
