Clean Air Technology Cleanroom Compounding Suite
Clean Air Technology Cleanroom Compounding Suite
Description

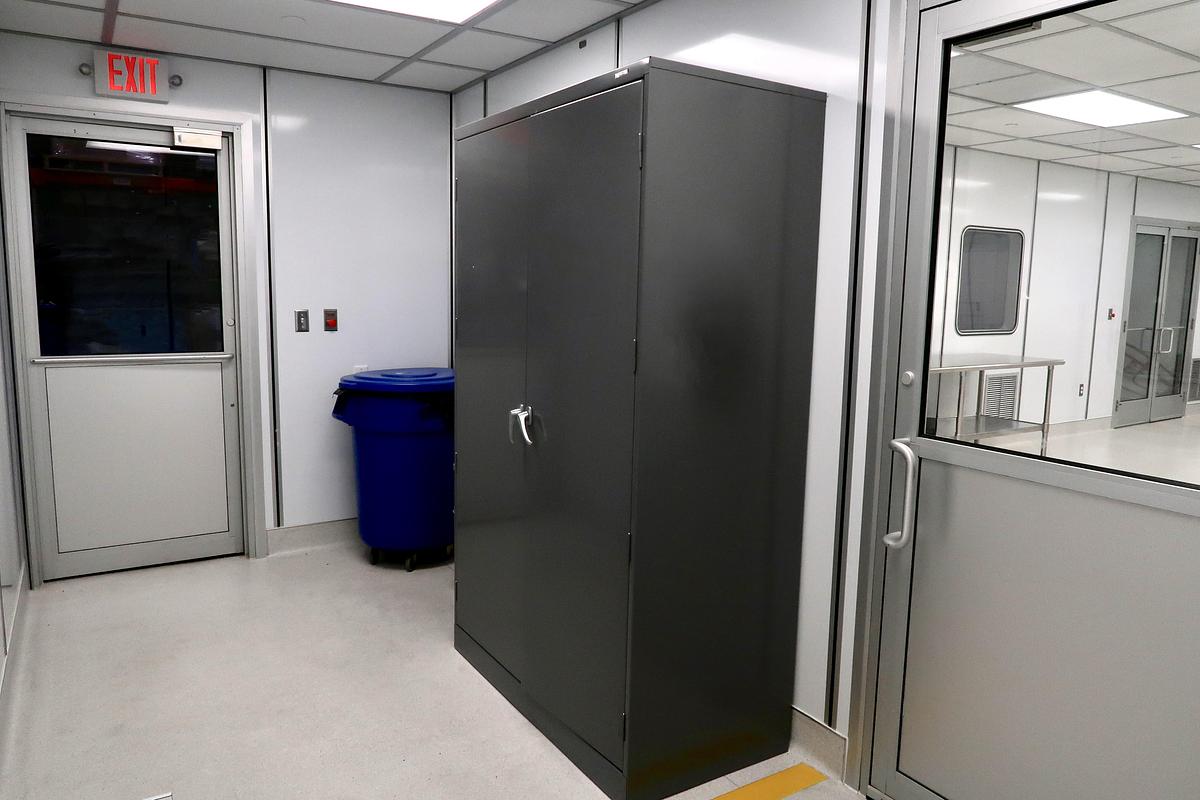

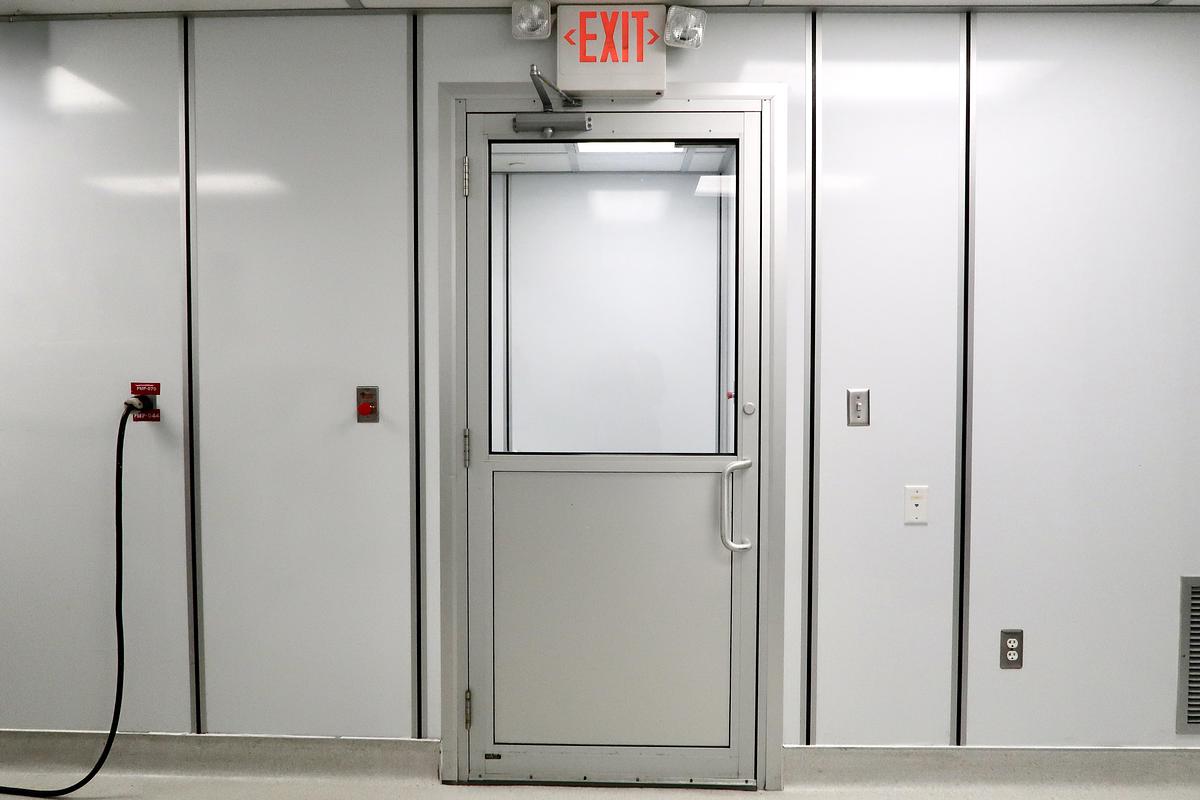

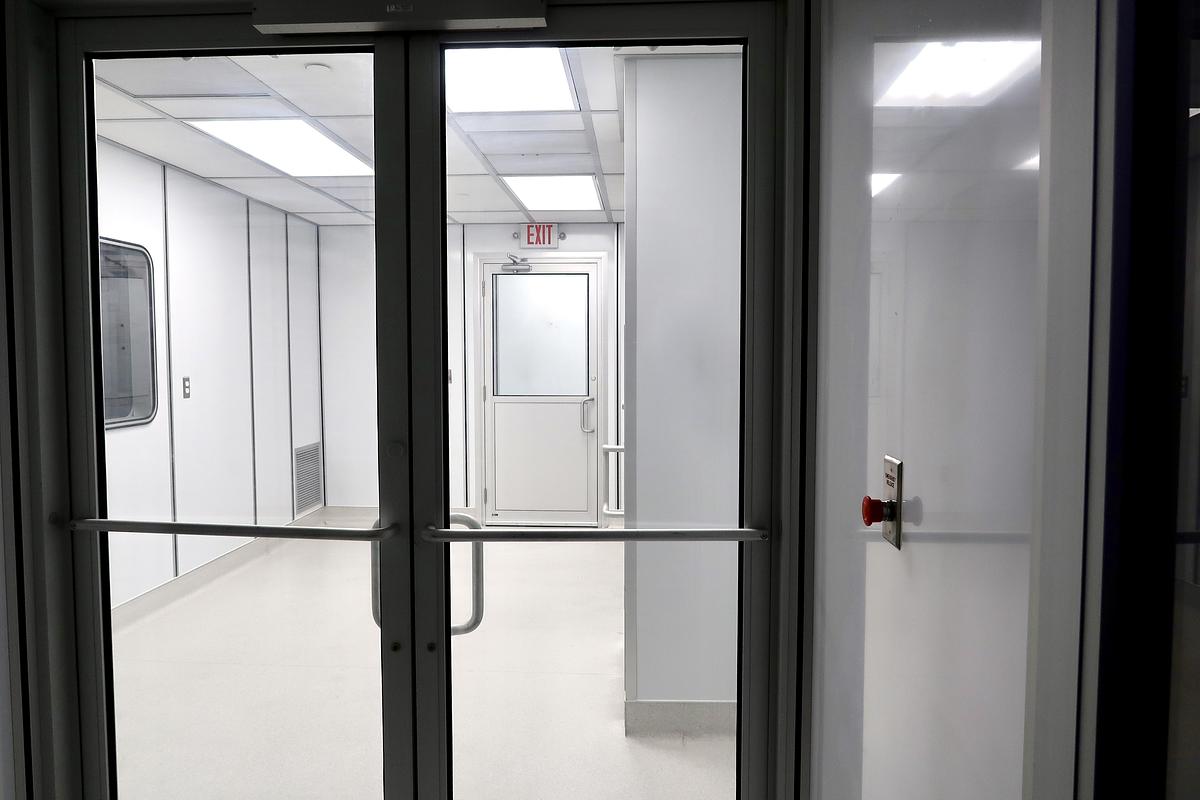

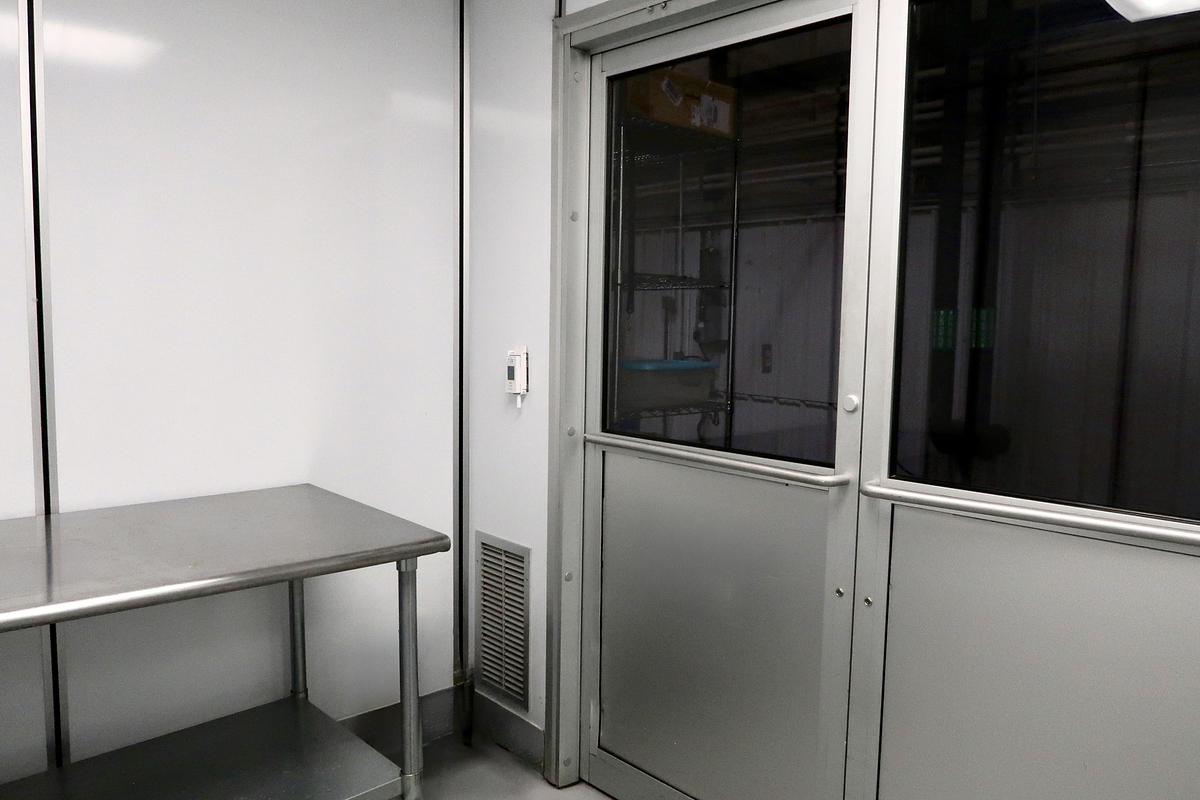

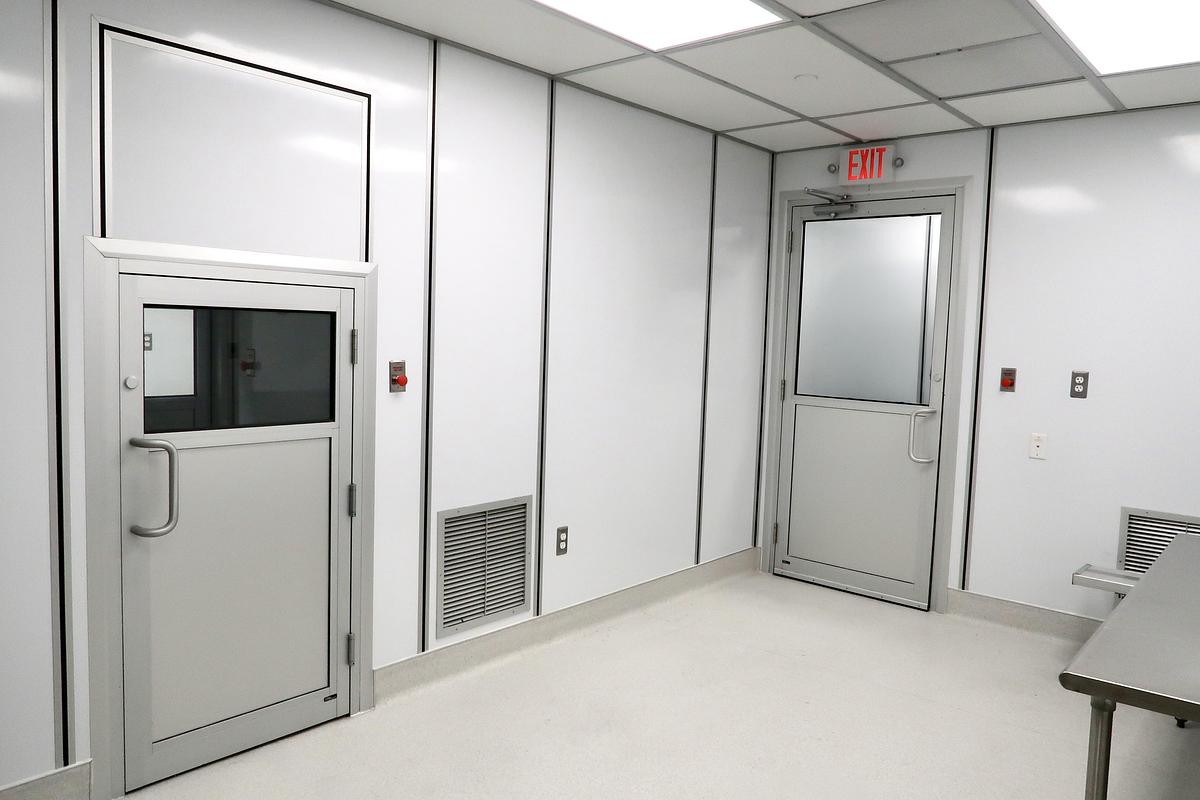

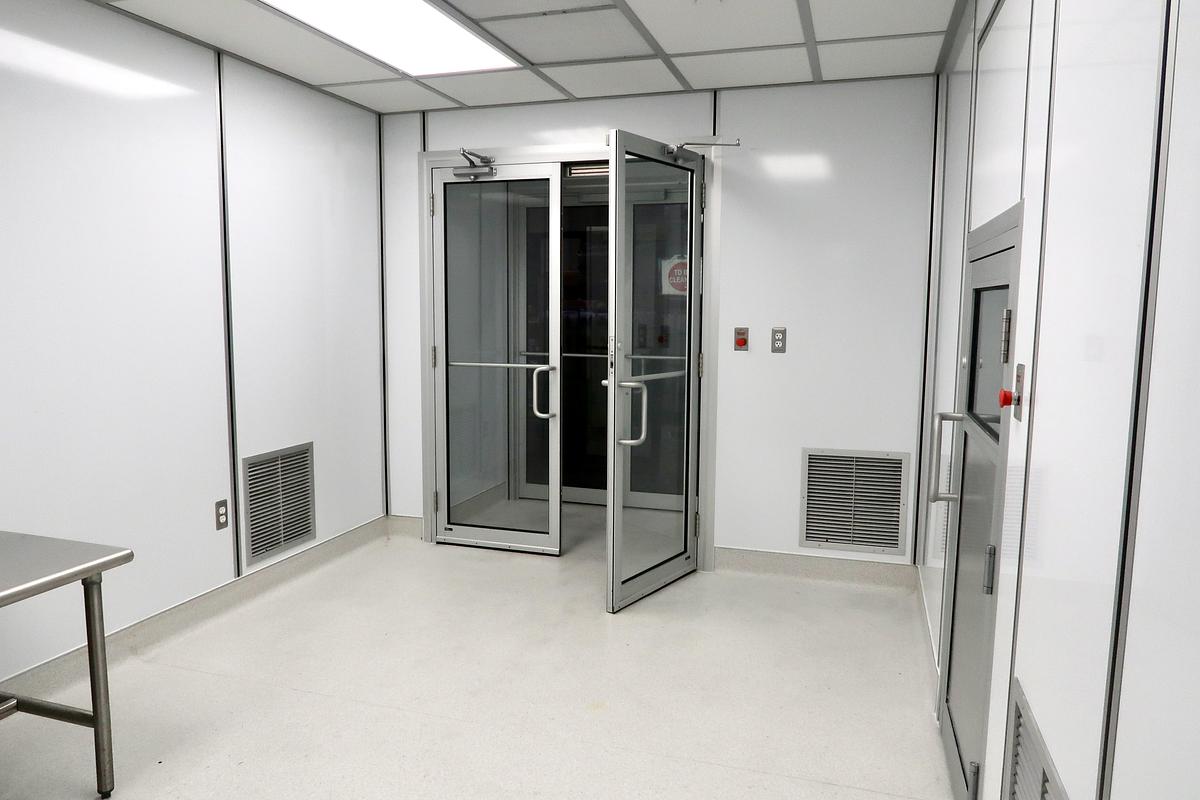

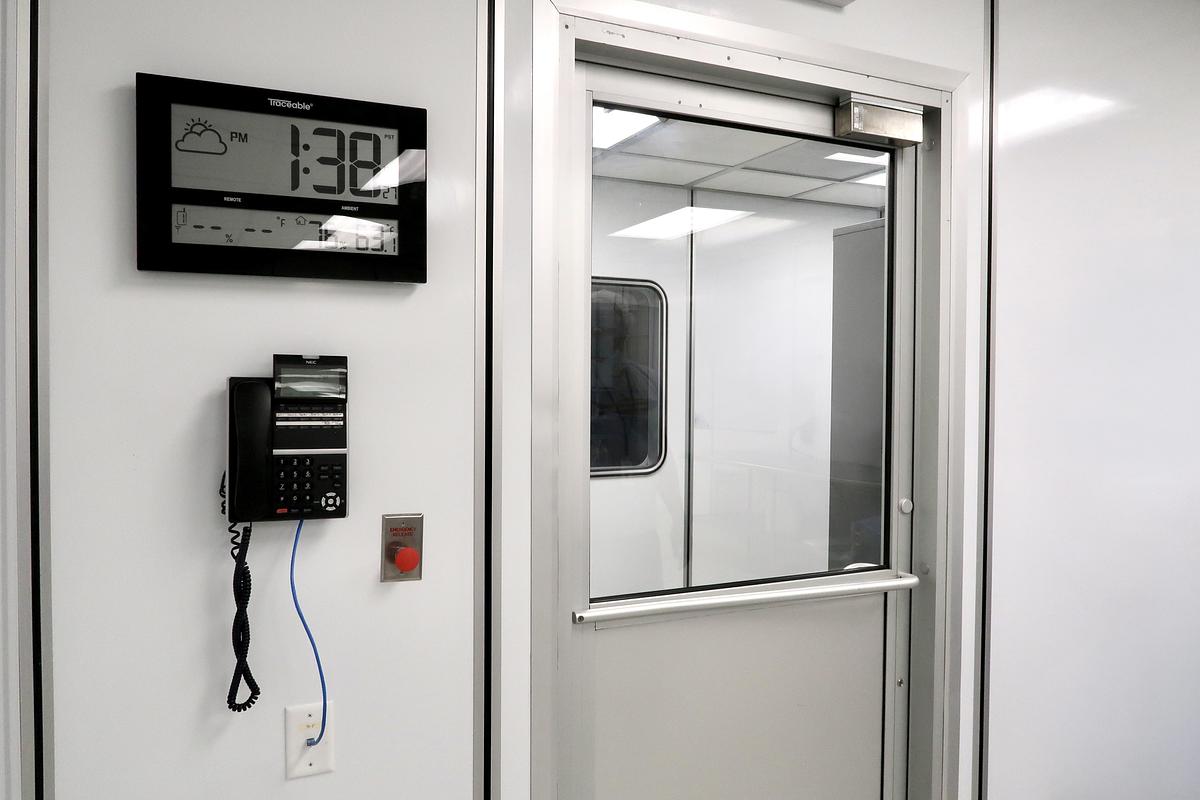

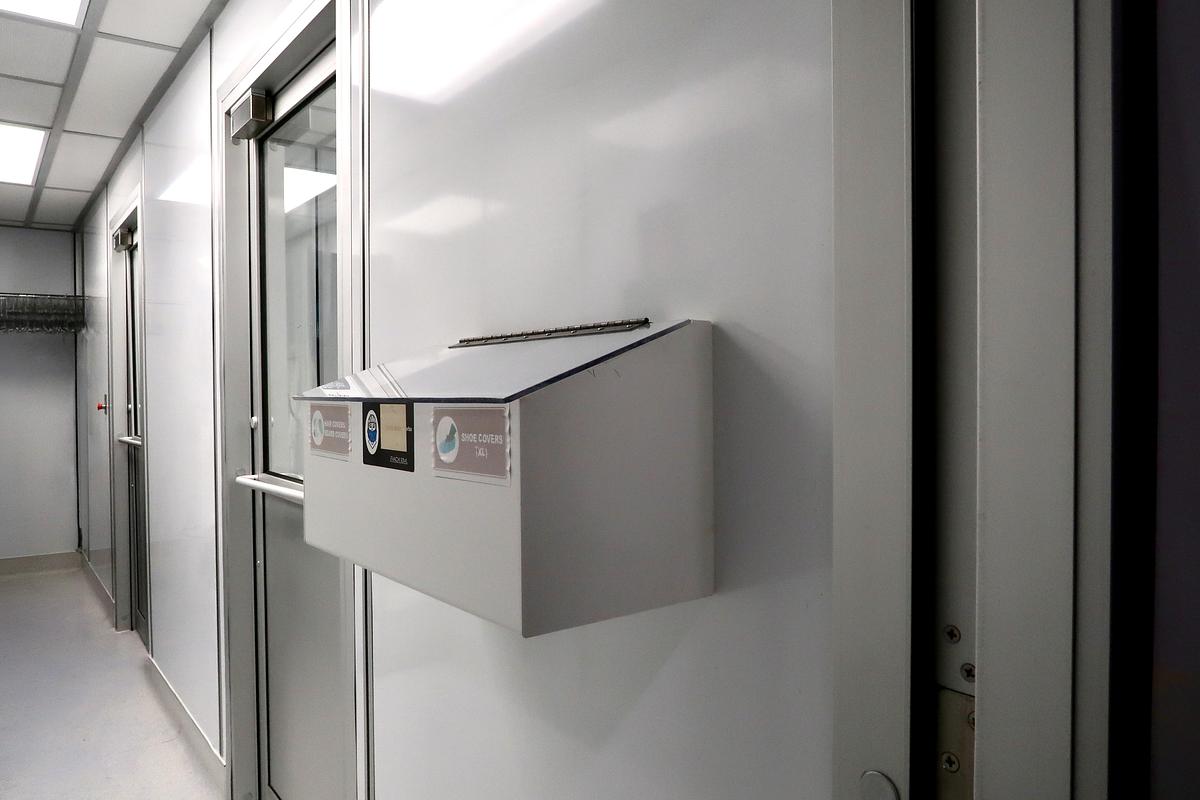

Clean Air Technology Modular USP 797/USP 800 Cleanroom Compounding Suite. Still installed, available for immediate inspection & relocation!

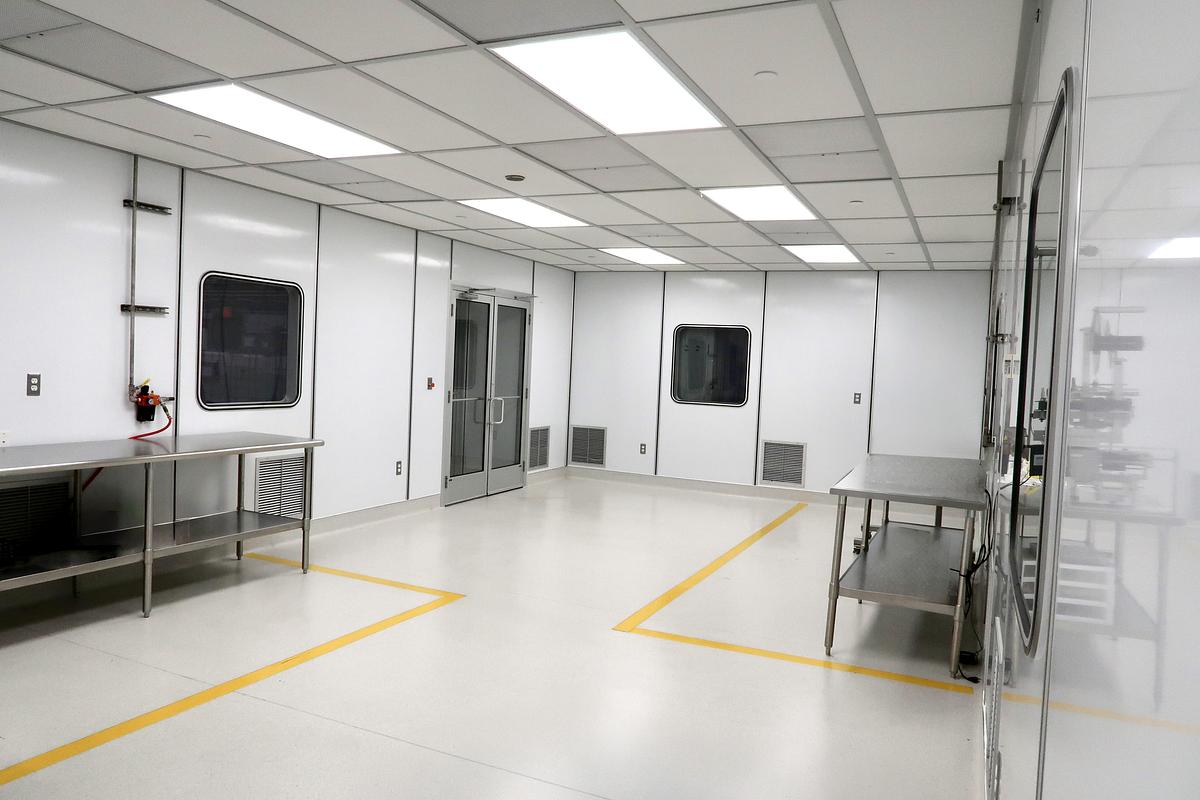

ISO 7 Areas (1,241 sq ft): Cream Room (512), Fill/Pack (174), Concentrate (216), V-Blend (154), Gown Room (87), Sample Room (61), Sample Gown Room (37)

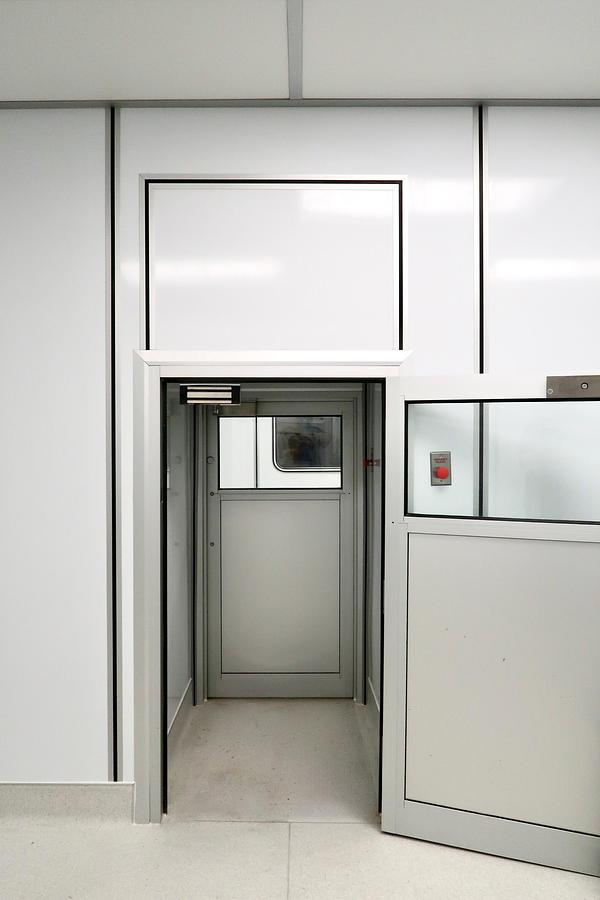

ISO 8 Areas (183 sq ft): Cream Room Gown Room (108) + 5 Cart Pass-Thrus (13 + 18 + 18 + 18 + 8)
Total footprint: 1,424 sq ft
The left-hand cluster (Fill/Pack, V-Blend, Concentrate, Sample rooms) is the USP 800 hazardous side (dedicated exhaust, rooms at ~0.00" WC). The right-hand Cream Room cluster is the USP 797 non-hazardous sterile side (highest positive pressure at +0.06" WC). Pressures cascade as expected. Cart pass-thrus are all ISO-8.
As-built drawings attached
Specifications
| Manufacturer | Clean Air Technology, Inc. |
| Year | 2021 |
| Condition | Used |
| Stock Number | 1850-01 |
| Air Change Rates | Target 60 ACH in ISO-7 rooms and 30 ACH in ISO-8 spaces |
| Air Handlers | RAHU-1 (6,180 CFM) serves the 800 side; RAHU-2 (5,070 CFM) serves the 797 side. Both sit on the cleanroom roof deck with a pre-cool coil box, electric duct heaters, and humidifiers. |
| Cooling | 70-ton Trane packaged air-cooled chiller + Armstrong CHW pump (165 GPM). |
| Exhaust | Dedicated 6,180 CFM fan + biofilter housing for the 800 area; stack on the building exterior. |
| HEPA | 23 terminal ceiling modules |

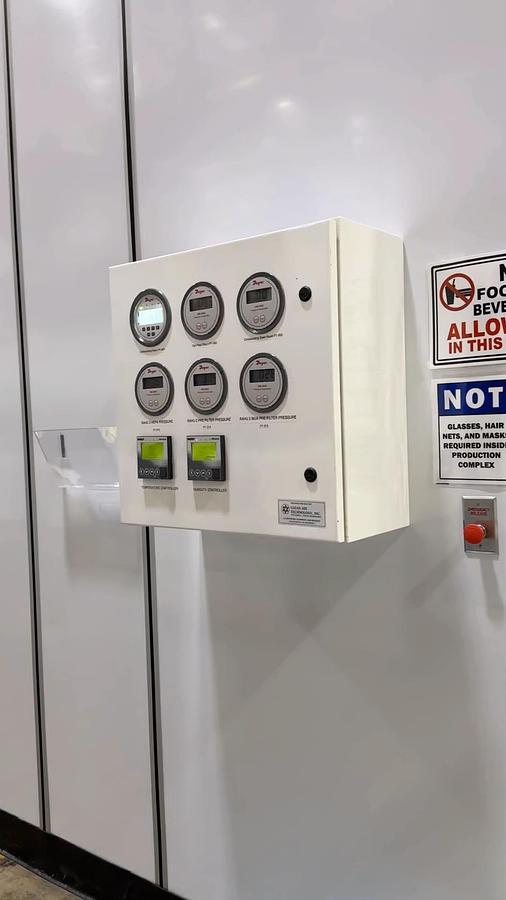

| Controls | Separate panels for 797 vs. 800 areas (Dwyer digital Magnehelics + West temperature/humidity controllers) |
